LSSC-D004-1
Lisa
| Product parameters | |||||
| serial number | project | Action parameter | other | Operation method | |
| 1 | headboard | Fold up≥35° | Fold down≥90° | Detachable | manual |
| 2 | backplane | Fold up≤75° | Fold down≥10° | manual | |
| 3 | waist bridge | lift≥100mm | manual | ||
| 4 | Lean back and forth | ≥28° | ≥18° | electrically | |
| 5 | Tilt left and right | ≥23° | ≥18° | electrically | |
| 6 | longitudinal parallel movement | 400mm±20mm | electrically | ||
| 7 | Leg plank | outreach≥180° | Detachable | manual | |
| 8 | mesa size | 2010mm×500mm±20mm | |||
| 9 | mesa lift | 730mm--980mm±20mm | manual | ||
| 10 | voltage, power | 220V/50Hz、200VA | carry battery | 50-80 surgeries in a row | |
| 1. Product function: This product is suitable for use in thoracic and abdominal surgery, urology, anorectal surgery, etc. It is easy to operate by combining the advantages of similar products. | |||||

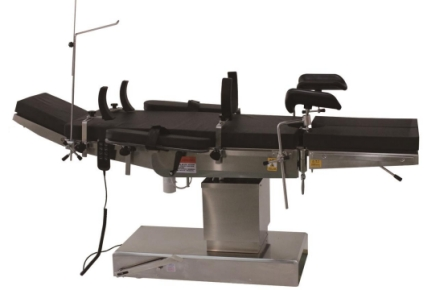

| 2. The appearance of the product is made of 304 stainless steel, and the whole is composed of three parts: a movable base, a lifting column and a bed surface. The bed surface is made of shock-resistant insulating materials, which are divided into head board, back board, waist bridge, seat board, leg board, arm support, anesthesia screen frame, waist-shoulder support, leg support and other components to meet the routine operation. | |||||
| 3. The mattress is made of memory foam material and waterproof fabric, which has the effect of memorizing the patient's position. You can also choose a polyurethane material one-shot mattress. The seamless design of the bed surface is conducive to the cleaning and protection of equipment. | |||||
| 4. The bed board is acrylic board, which can transmit X-ray. | |||||
| 5. This product adopts high-quality electric push rod as the power load ≥300kg, and the DC 24V safety voltage is safe and reliable. | |||||
| 6. This product is equipped with an emergency power supply, and the base has a leak-proof design. In the absence of AC power, it can automatically supply power and work normally. | |||||
