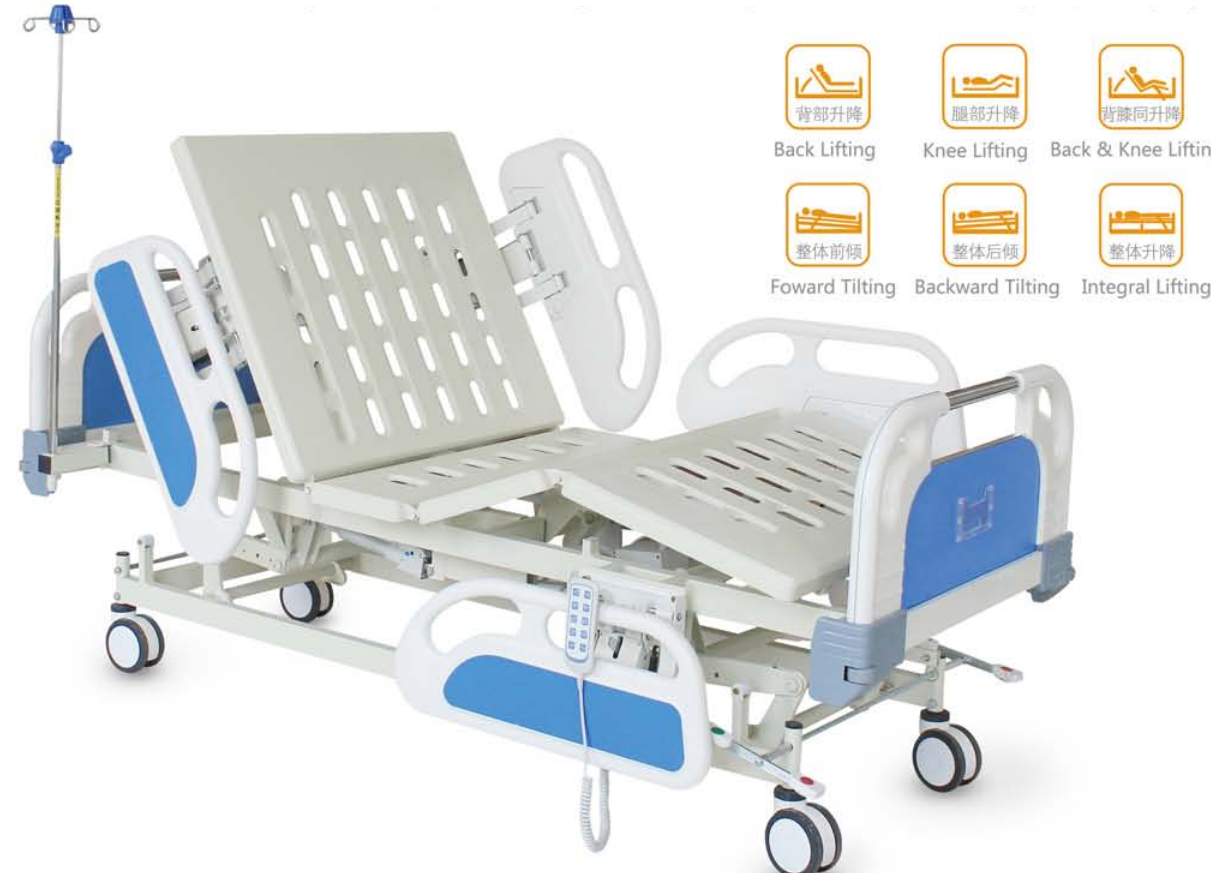

LSDA-B04
Product Description
Overall length 2120mm
Back lift angle 0~75° ±5°
Full width 1030mm
Leg lift angle 0~35° ±5°
Bed height 450mm ~750mm
Tilt 9° fore and aft
Inner diameter length 1995mm
Inner diameter width 900mm
1.Shape Size:2120*1030 (450-750)mm,bed board size:1950*900mm
2.Integral lifting adjustment:450mm-750mm.It is convenient for nursing the patient.
3.The headboards and footboards are made of high quality ABS engineering plastics.
4.125mm dia.noiseless castors with central locking system make the bed move flexibly and brake reliably.
5.Junctions adopt once shaping technique stamping parts which assured the fastness of the bed.
6.3C MC certification high quality and powerful electric pushrods.
7.Back-rest lifting:0-75°±5°，knee-rest lifting:0-35°±5°，integral forward or backward tilting:9°，load capacity:≤250KG.
