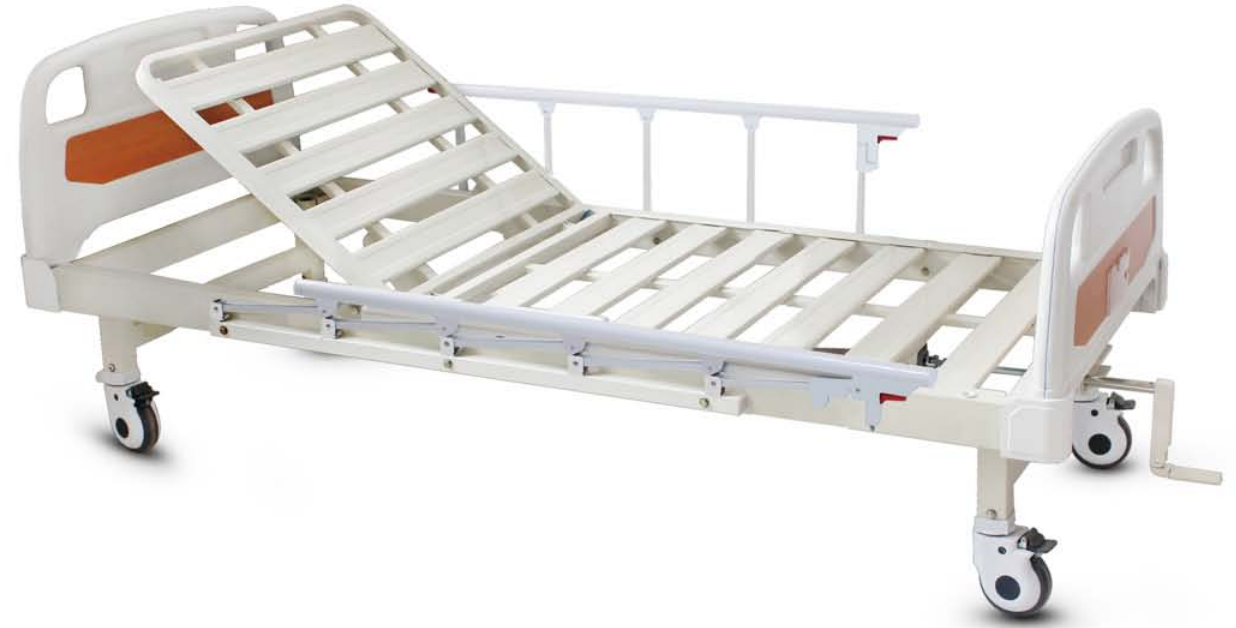

LSDA-B22
Product Description
Overall length 2120mm
Back lift angle 0~75°±5°
Full width 960mm
Leg lift angle
Bed height 470mm
Load bearing ≤250kg
Inner diameter length 1995mm
Inner diameter width 900mm
1.Shape Size:2120*960*470mm,bed board size:1960*900mm.
2.The bed boards are made of overall punching formed cold-rolled steel sheet.The headboards and footboards are
made of high quality ABS engineering plastics.
3.Each bed side rail adopts 5 aluminum alloy foldable rods
4.The junction parts between the bed legs and the screws adopt once shaping technique stamping parts which
5.assured the fastness of the bed.
Equipped with 60*60mm high quality screws and white ABS foldable crank.
6.Back-rest lifting:0-75°±5°，oad capacity:≤250KG
