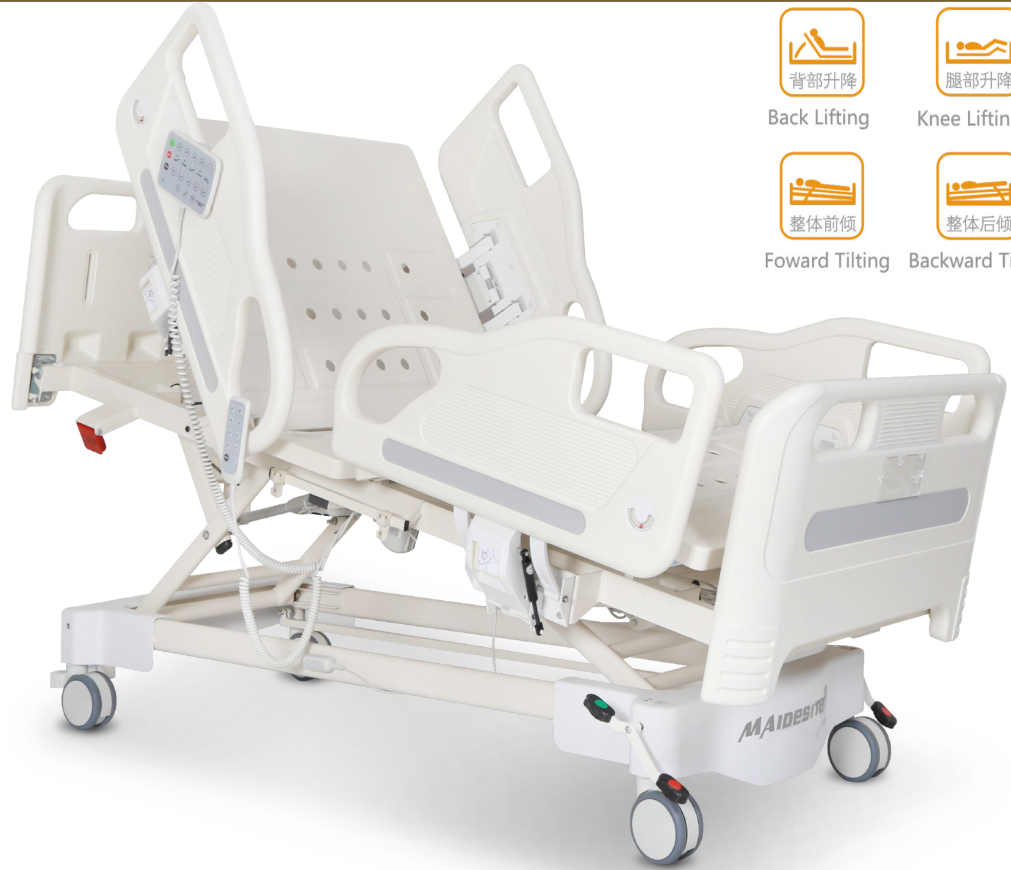

LSDA-S501
Product Description
Overall length 2130mm
Back lift angle 0~60°
Full width 1080mm
Leg lift angle 0~33°
Bed height 450-850mm
Bearing ≤250kg
Inner diameter length 1950mm
Inner diameter width 900mm
1.Overrall Size:2130*1080*(450~850)mm,bed board size:1950*900mm.
2.Integral Raising up down,the highest level is 850mm,and basic level is 450mm.
3.Connecting parts are punching form by one time,can use long time.
4.Have cpr key and emergency stop key,battery support even power off.
5.National certification high quality and powerful electric pushrods.
6.Back-rest lifting0-60°，keen-rest lifting0-33°，front./pack front oblique angle14±3°，loading capacity less than 250kg.
