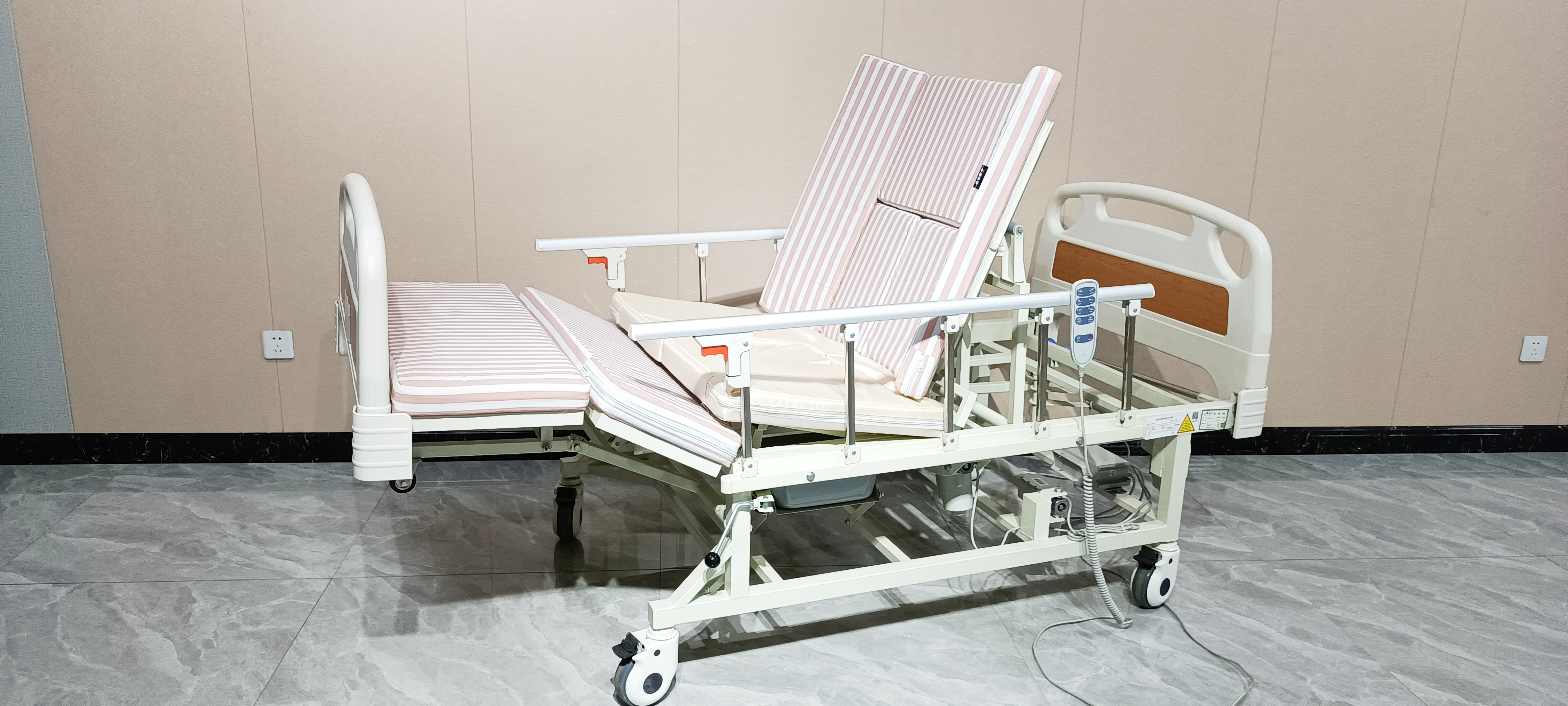

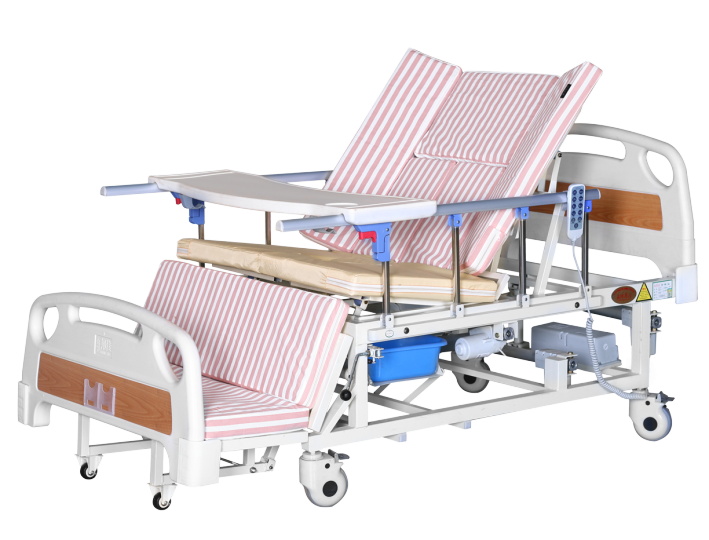

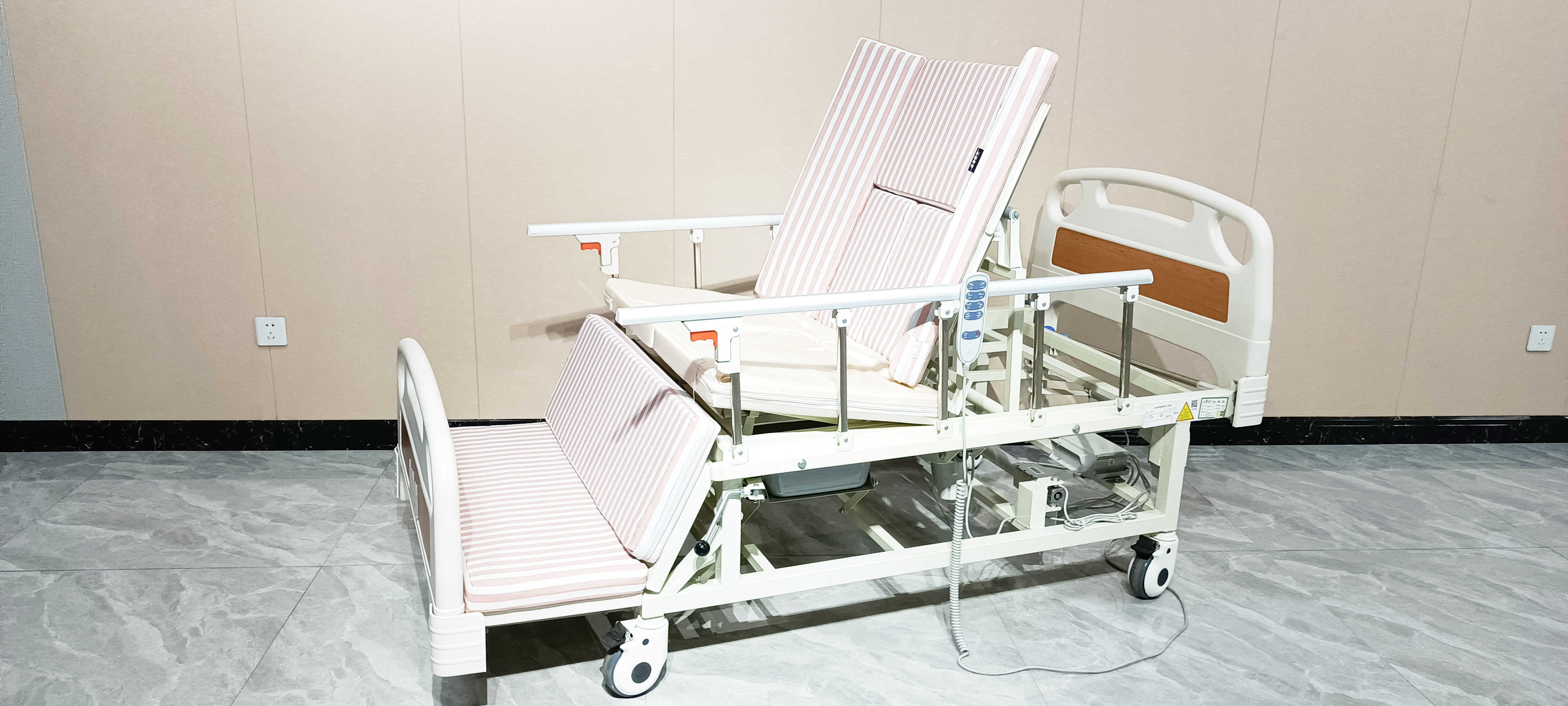

LSYA-BD01 Dual use nursing bed with flashlight
Product parameter training
I. BD01 product parameters
This product is a manual electric integrated full bend leg nursing bed
1, BD01 specifications:
Size gauge: length 2080mm, bed width 960mm, bed body standard height 560mm.
Stool hole size: 310X230mm
2. Functions:
1) The number of motors is 3, and the four electric functions (electric turning around, electric rising, electric leg lifting) are converted to manual sitting. And the timing of turning over function and the back of the side slide function, the timing of turning over time for 30 minutes and 45 minutes of two options.
2) Adjustment range: back can be lifted Angle: 0-75°
Leg position can be raised or lowered from +25° to -75°
Side turning up and down Angle: 0-60°
3) aluminum alloy guardrail:
's side fence is 1150 mm, armrest, D type aluminum alloy surface hardening treatment, four pillar, stainless steel guardrail and connectors used a steel stamping parts, the thickness of 2.5 mm, switch is designed to ensure the safety of long-term use, equipped with elastic firmware prevention, wear-resisting, not deformation, retractable flat, contracting slightly above the bed surface, can prevent the displacement of the mattress.
4) Headboard and tailboard:
ABS engineering plastic, interlace wood grain color using a mold injection molding, fade resistance, aging resistance, corrosion resistance, easy to clean. A transparent medical record card is installed at the end of the bed. The head of the bed and the end of the bed can be disassembled freely without the help of any tools.
5) Move the mute caster:
Convenient free movement; At the same time with a brake device to fix the bed, the diameter of the caster 12cm, built-in double
Bearing, fork adopts cold plate 2.5mm (thickness) one stamping molding, tread is soft tread.
6) Mattress:
Double mattress cover: the outer layer is made of pure cotton cloth, and the inner layer is waterproof cloth cover to prevent liquid from contaminating the inner tank. The inner material is made of 4cm hard brown wire with good air permeability, 2cm high density sponge with good resilience, and treated with insect control, beautiful appearance, easy to remove and wash. The stool hole is made of waterproof fabric to prevent stains from wetting the inner tank.
7) Open the door in one second:
The load-bearing material of the urinal door is a solid steel rod with a diameter of 20mm, which can effectively support the hip strength and ensure that there will be no subsidence and no return after long-term use. The position of the toilet mouth mattress and the toilet mouth adopts sticky and design, so that there is no need to move the nursing staff when taking the toilet. The mattress can be taken away with the fast toilet catching device, so that the toilet mouth can be opened within 1 second, so as to realize the real zero waiting. And equipped with adjustable height device, such as in the process of using the mouth subsidence, can be adjusted to restore the original position. The bearing plate of the container under the mouth is formed by the steel plate with a thickness of 1.2mm, which is safe and reliable.
8) Leg weight bearing:
The supporting material is a round tube with a diameter of 32mm and a thickness of 2.75mm, which can bear the weight of 100kg safely, securely and without deformation after long-term use.
9) Back lifting pulley design:
It is equipped with 4 wide pulleys to avoid noise and damage caused by friction between bed bodies for a long time. Reduce friction, reduce the burden of nursing staff.
10) Design of turning pulley:
In the left and right turn over when equipped with rotating pulley, can reduce friction resistance, increase service life.
11) Rounded frame design:
The rounded frame design is not simple and beautiful, but also increases the integrity of the whole frame, and avoids scratches on the bedding and mattress when using.
12) The infusion stand is of lifting type, and the height can be adjusted according to user's requirements. The supervisor IS MADE OF HIGH quality 430 STAINLESS steel tube, with three hooks, which can carry out multiple bottles of infusion at the same time, and can be folded and stored at the head of the bed when not in use.
13) Design of leg touchdown pulley
When THE leg descends to CONTACT WITH the GROUND, THE small black wheel at the bottom of the leg is equipped to roll with the ground to avoid scratching the floor.
14) One-button reset function
Click the reset function button, the nursing bed can return to the lying state, do not need to restore each functional state in turn,
Standardize the operation process.
15) As the motor ends of products on the market are all exposed, they are easy to intertwine with objects in electric care. The motor ends of our products are all designed with built-in design, which is not only beautiful but also completely avoids the occurrence of similar situations.
16) The bed body can bear weight of 300㎏.
3. Material:
1) Bed bed adopts 40×60 square tube with a thickness of 1.2mm. The bed surface is made of 15×30 square tubes with a thickness of 1.2mm. Bed connectors are made of thick wall 2.75mm pipe or 3mm cold plate.
2) Welding process;
The bed frame and bed surface are welded by robot, welding is firm, welding is smooth and durable.
3) Bed spraying process:
Bed surface after steel shot sandblasting rust, electrostatic spraying, bed coated with antistatic powder, acid and alkali corrosion, fade resistance.
4. Product configuration
Control handle, control box, power cord, silent wheel, aluminum alloy guardrail, dining table, 6cm mattress, colored cotton bedspread, shampoo basin, bedpan, infusion stand, ABS head and tail, manual, warranty card
