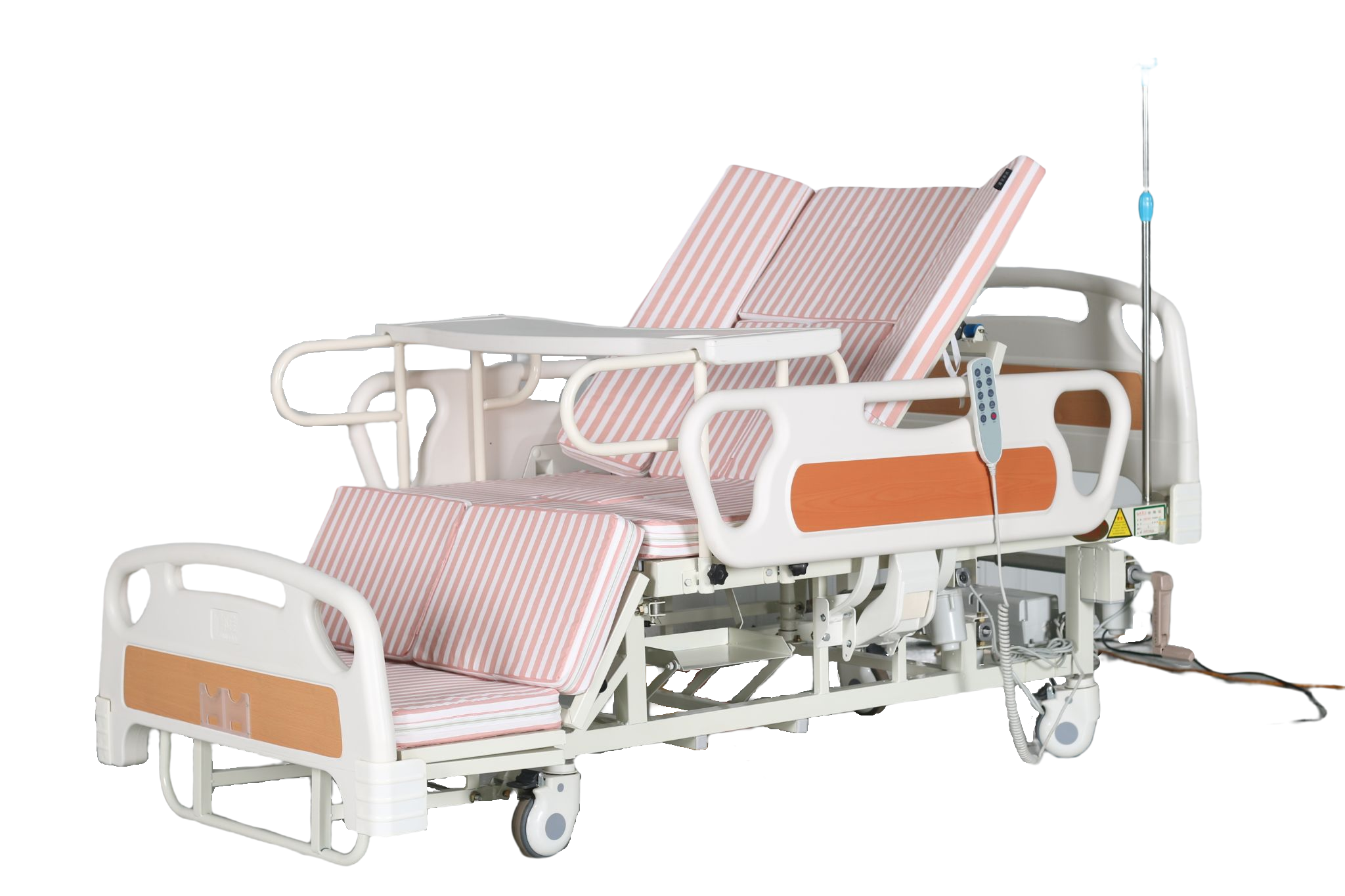

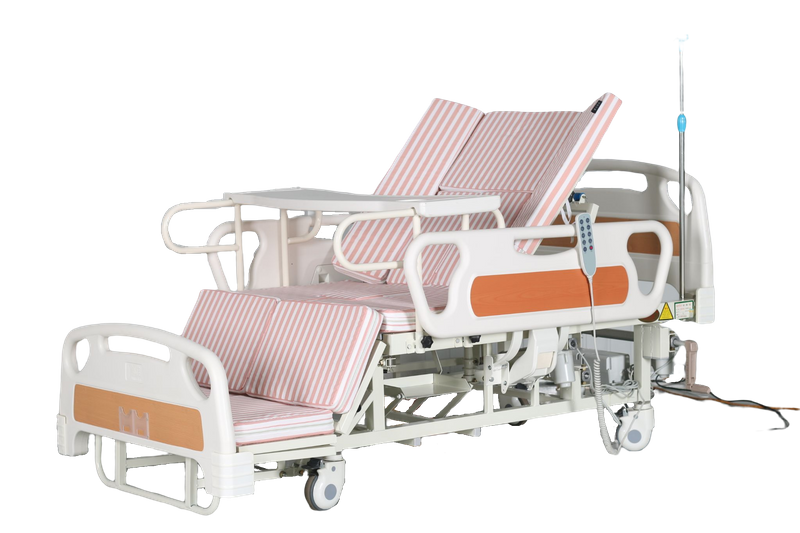

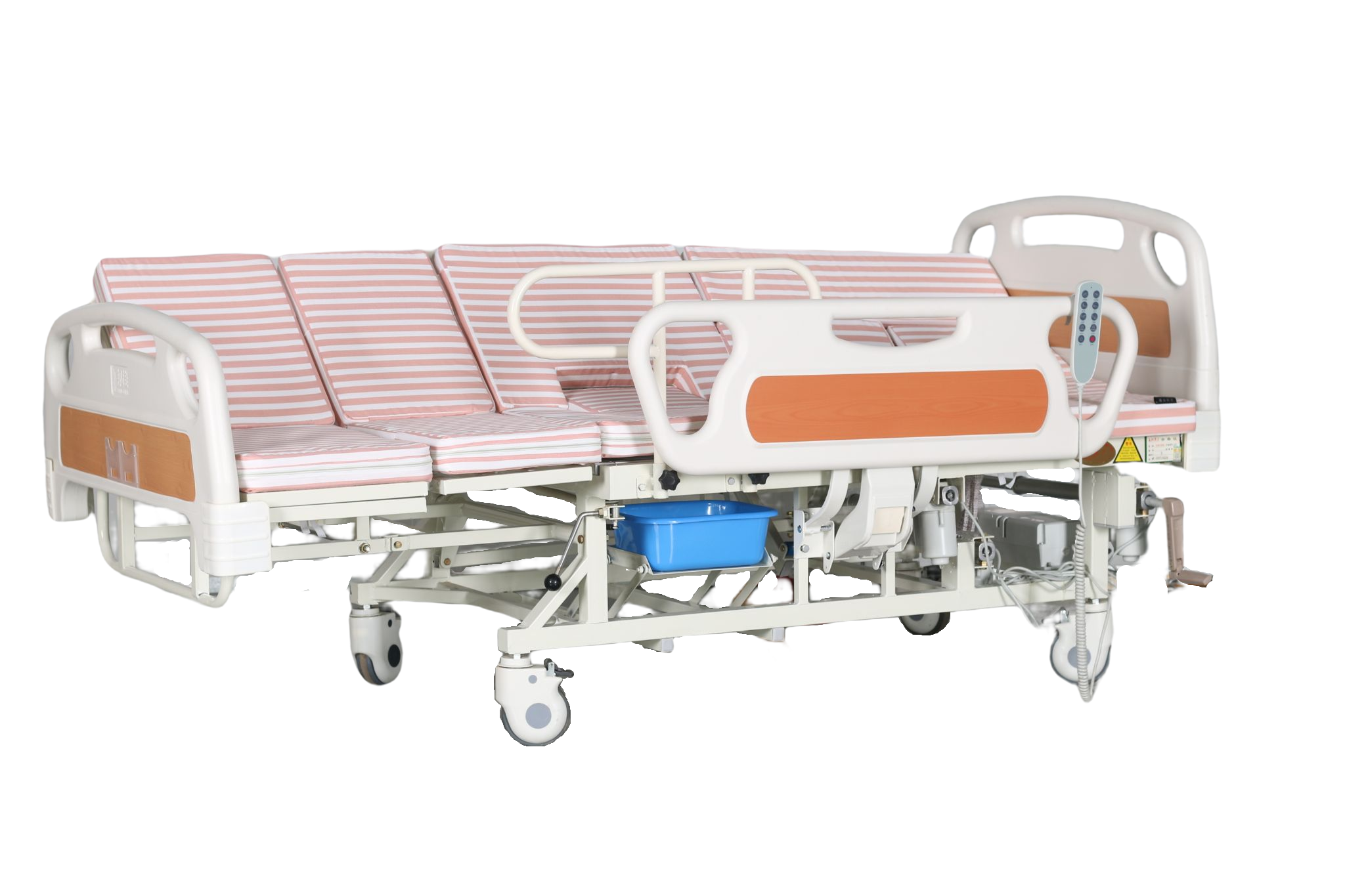

LSYA-C05-1 Dual Use Nursing Bed with Flashlight
Product parameter training
I. C05 product parameters
This product is a manual electric integrated full bend leg nursing bed
1. C05 Specifications:
Dimensions: Length 2100mm, bed width 1100mm, bed height 560mm.
Stool hole size: 310X230mm
2. Functions:
1) The number of motors is 3, and the four electric functions (electric turning around, electric rising, electric leg lifting, electric) are converted to manual sitting. And a timing turn over function, timing turn over time for 30 minutes and 45 minutes of two options.
2) Integral side turning function
The turning effect of this product is to turn over the bed body to the left and right. The Angle can be adjusted at will according to the need. The speed is gentle and the Angle is reasonable.

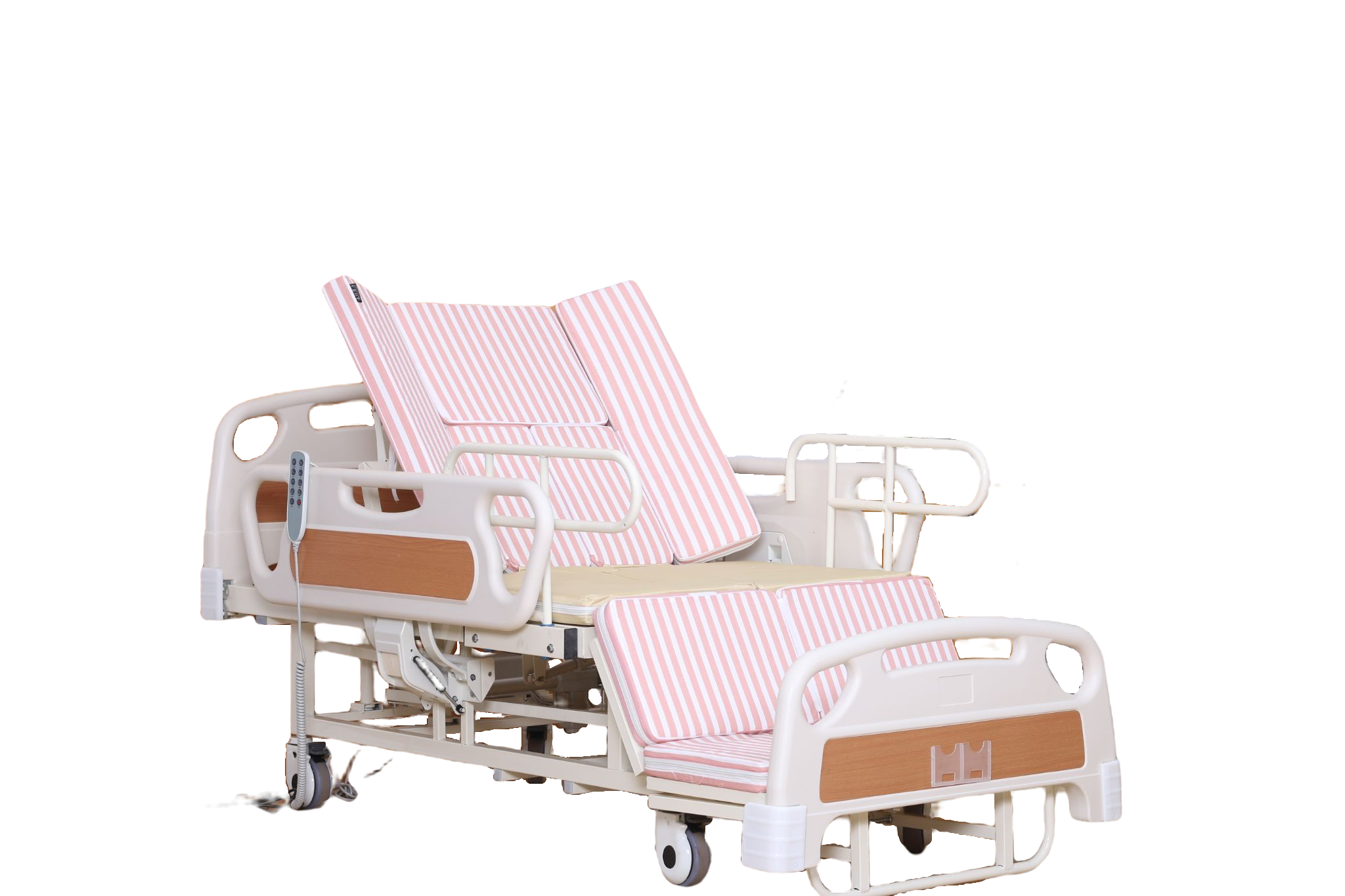

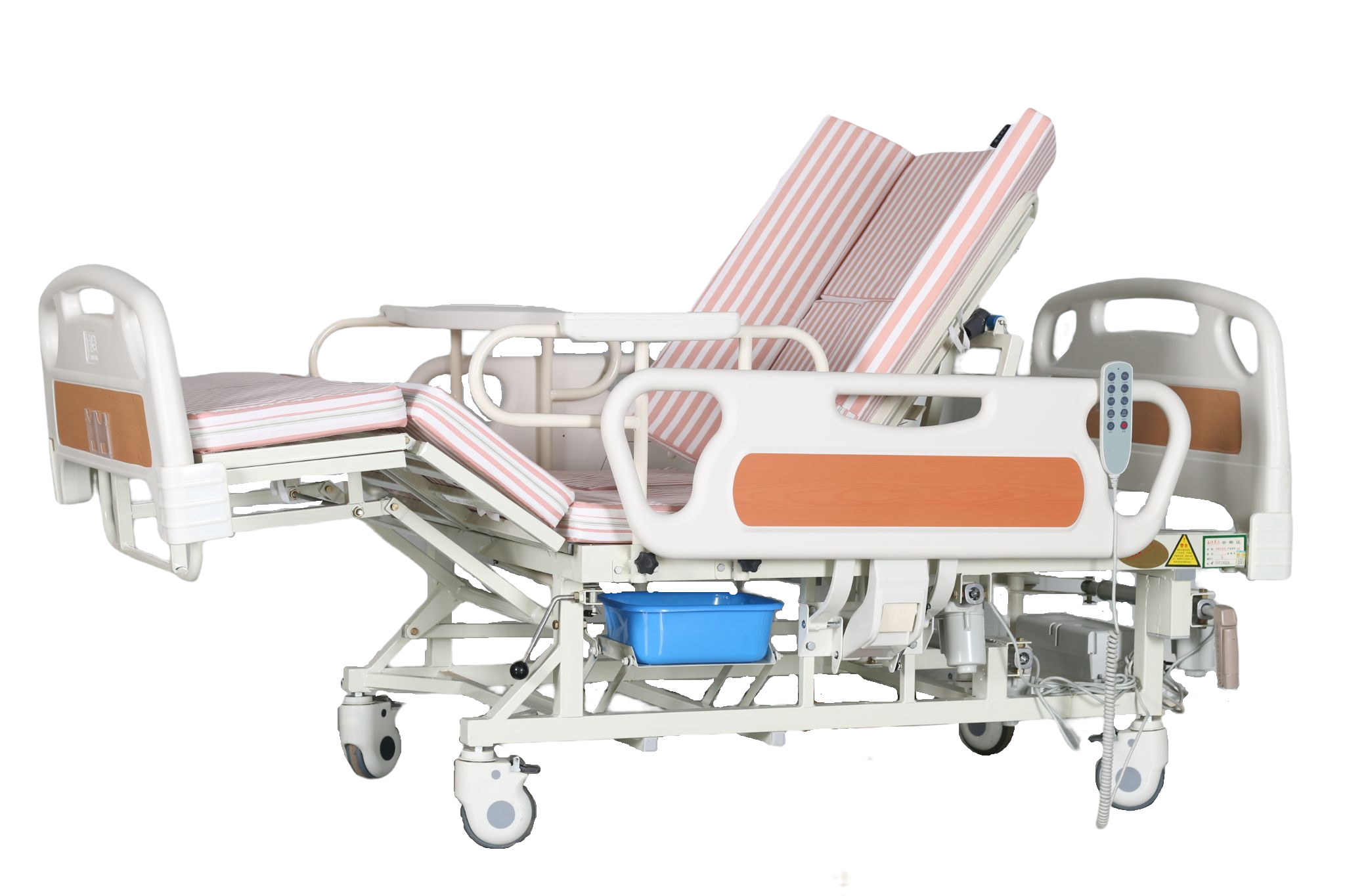

3) Adjustment range: back can be lifted Angle: 0-75°
Leg position can be raised or lowered from +30° to -75°

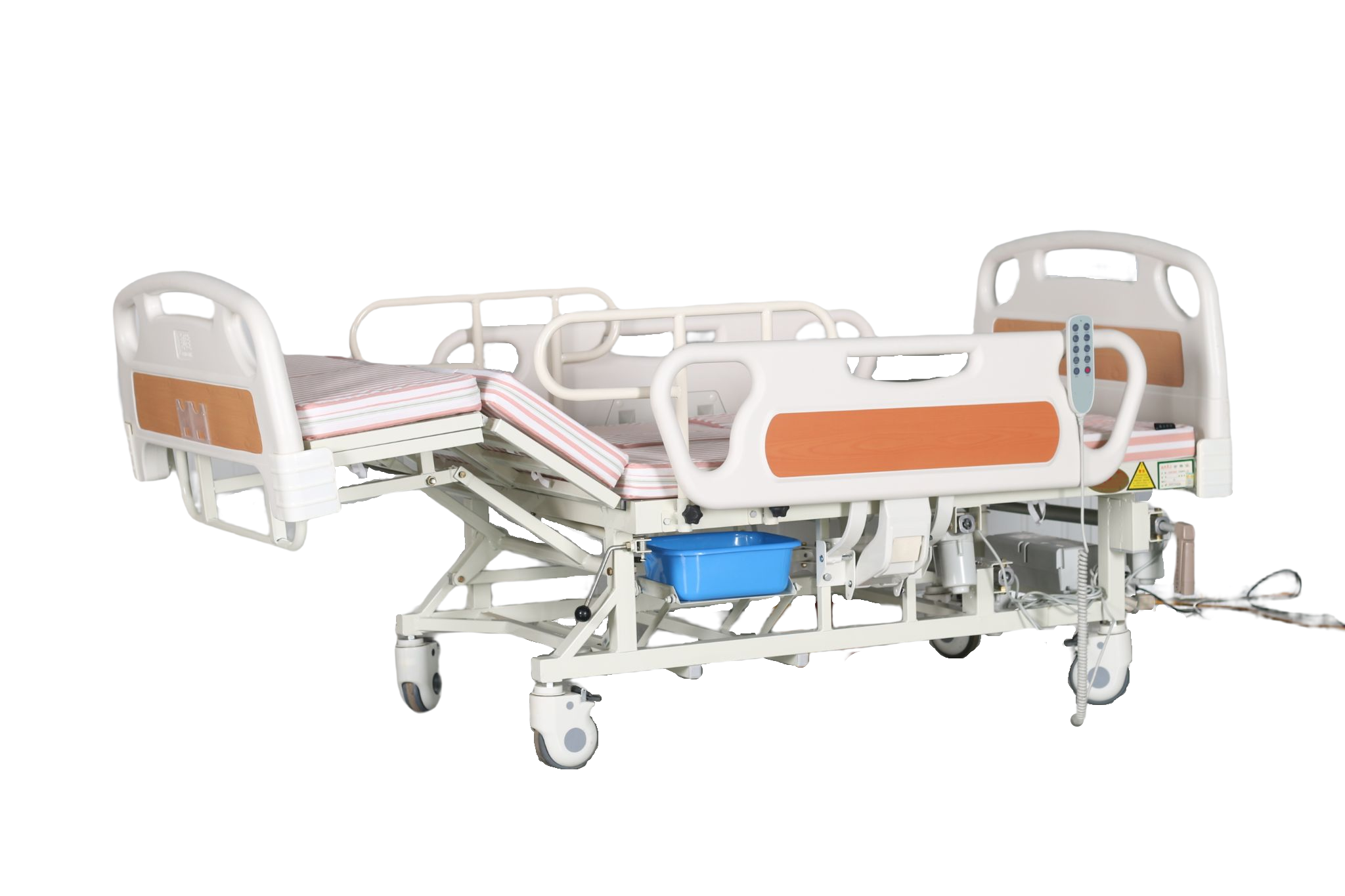

Side turning up and down Angle: 0-45°
4) One-button reset function
"Reset" function key, continuous point press twice can make the bed body reset lying state, and do not need to restore the functional state in turn, simplify the operation process, continuous point press twice can effectively avoid the misoperation caused by mistake.
5) Emergency stop function
In order to prevent the special situation caused by improper operation, the remote control handle is specially equipped with emergency stop button. In case of special situation, you can press the "emergency stop" function key to stop all functions immediately. After the accident is relieved, you can continue to operate.
6) Handle luminous function
Click any function key, the light of all function keys on the handle will light up, which is convenient for users to use at night.
7) ABS big barrier
Side guardrail ABS plastic lifting guardrail, with a total length of 1100mm, can be lifted up and down. There is pneumatic deceleration device in the process of falling, to prevent the excessive speed in the process of falling, which will cause harm to personnel. When it is slightly higher than the bed surface, it can prevent the mattress from shifting.
8) Headboard and tailboard:
ABS engineering plastic, embellished with blue mold injection molding, fade resistance, aging resistance, corrosion resistance and easy to clean. A transparent medical record card is installed at the end of the bed, and it is engraved with the brand of Yonghui Medical. The head of the bed and the end of the bed can be disassembled freely without the help of any tools.
9) Move the mute caster:
Convenient free movement; At the same time with a brake device to fix the bed, the diameter of the caster 12cm, built-in double
Bearing, fork adopts cold plate 2.5mm (thickness) one stamping molding, tread is soft tread.
10) mattress
Double mattress cover: the outer layer is made of pure cotton cloth, and the inner layer is waterproof cloth cover to prevent liquid from contaminating the inner tank. The inner material is made of 4cm hard brown wire with good air permeability, 2cm high density sponge with good resilience, and treated with insect control, beautiful appearance, easy to remove and wash.
11) Manual wicket:
The load-bearing material of the urinal door is a solid steel rod with a diameter of 20mm, which can effectively support the hip strength and ensure that there will be no subsidence and no return after long-term use. The position of the toilet mouth mattress and the toilet mouth is designed with adhesive, so there is no need to move the nursing staff to take the mattress away. And equipped with adjustable height device, such as in the process of using the mouth subsidence, can be adjusted to restore the original position. The bearing plate of the container under the mouth is formed by the steel plate with a thickness of 1.2mm, which is safe and reliable.
12) Leg weight bearing:
The supporting material is a round tube with a diameter of 32mm and a thickness of 2.75mm, which can bear the weight of 100kg safely, securely and without deformation after long-term use.
13) Back lifting pulley design:
It is equipped with 4 wide pulleys to avoid noise and damage caused by friction between bed bodies for a long time. Reduce friction, reduce the burden of nursing staff.
14) Rounded frame design:
The rounded frame design is not simple and beautiful, but also increases the integrity of the whole frame, and avoids scratches on the bedding and mattress when using.
15) The infusion stand is of lifting type, and the height can be adjusted according to user's requirements. The supervisor IS MADE OF HIGH quality 430 STAINLESS steel tube, with three hooks, which can carry out multiple bottles of infusion at the same time, and can be folded and stored at the head of the bed when not in use.
16) The bed body can bear weight of 300㎏.
3. Material:
1) Bed bed adopts 40×60 square tube with a thickness of 1.2mm. The bed surface is made of 15×30 square tubes with a thickness of 1.2mm. Bed connectors are made of thick wall 2.75mm pipe or 3mm cold plate.
2) Welding process;
The bed frame and bed surface are welded by robot, the welding is firm, and the welding place is smooth and durable.
3) Bed spraying process:
Bed surface after steel shot sandblasting rust, electrostatic spraying, bed coated with antistatic powder, acid and alkali corrosion, fade resistance.
4. Product configuration
Control handle, control box, power cord, silent wheel, ABS large guardrail, dining table, 6cm mattress, colored cotton bedspread, shampoo basin, bedpan, infusion stand, ABS head and tail, manual, warranty card.
5. Product packaging
1) Because the steel used for the nursing bed should be thick, the weight of the product should reach 95kg. In order to ensure that the product can reach the hands of customers in good condition, the packaging of Yonghui nursing bed is made of special thickened corrugated cartons with built-in double backing board.
2) The quantity of product packaging is divided into 2 pieces.
Bed packing box size; 1500 long 970 wide 430 high
Headcase dimensions: length 1100 width 360 height 560
The total volume is 0.88 cubic
