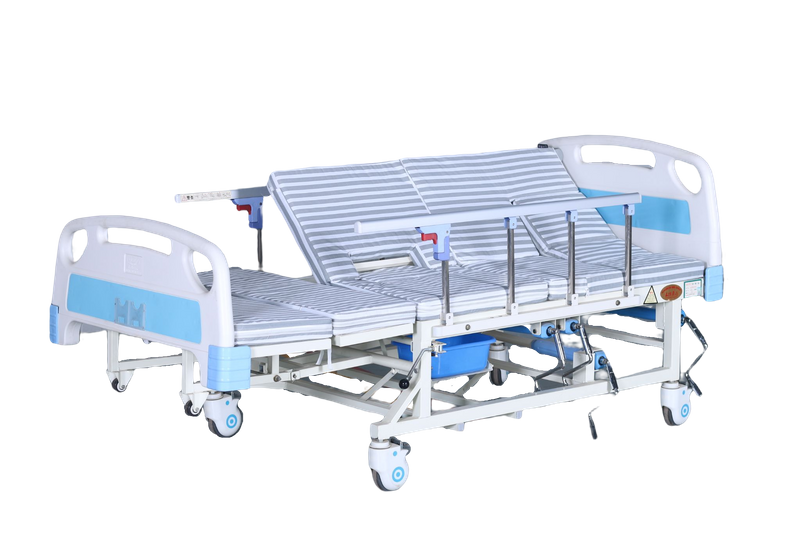

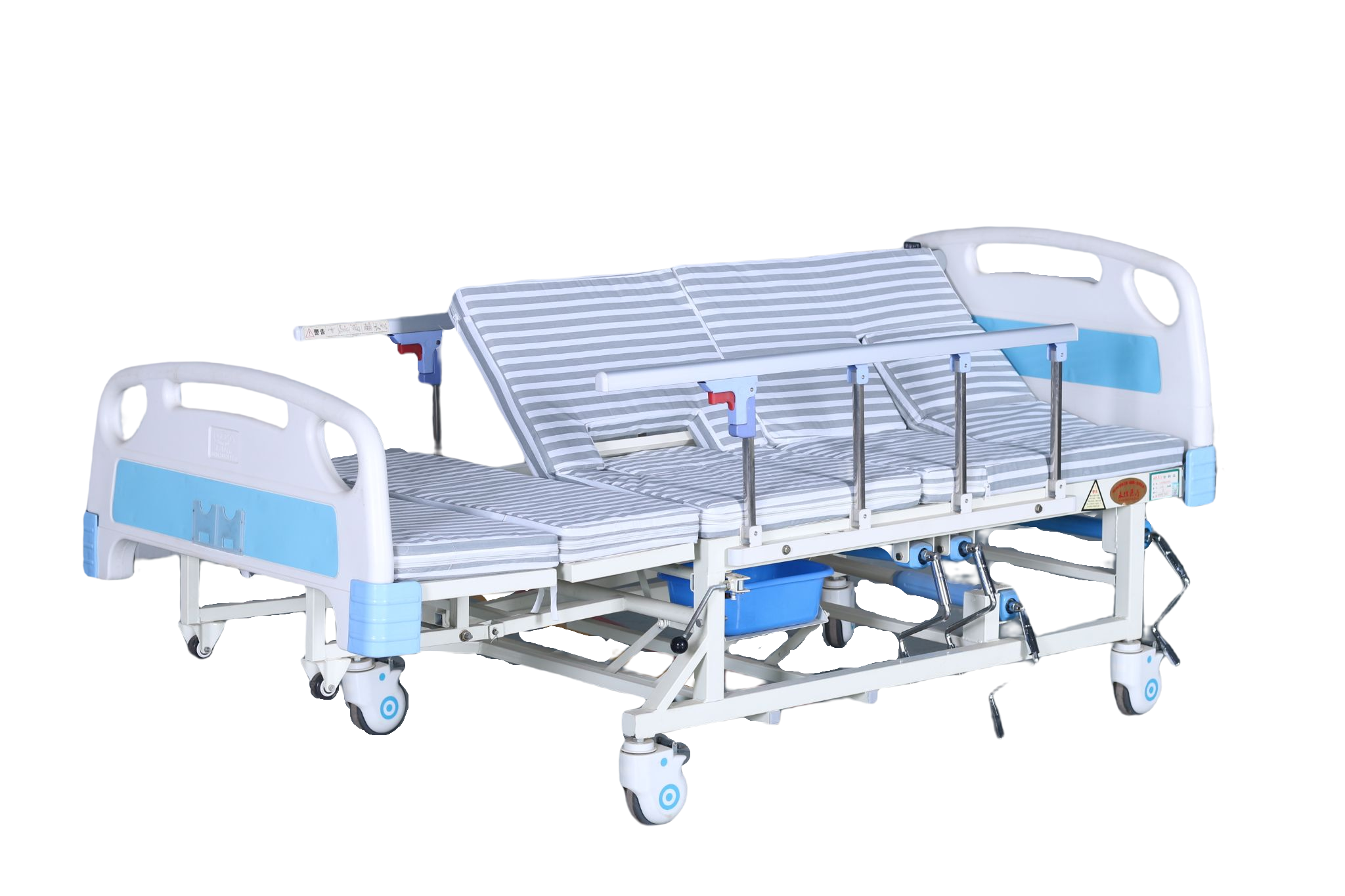

LSYA-C06-1 Manual Full Curve Nursing Bed
Product parameter training
1. C06-1 product parameters
This product is a manual full-curved leg nursing bed
1. C06-1 Specifications:
Dimensions: Length 2080mm, bed width 960mm, bed standard height 560mm.
Size of toilet hole: 310X230mm
2. Function:
1) The number of cranks is 4, the manual turning left and right is 2, the manual lifting is 1, the manual leg lift is 1, and the toilet is converted into a quick wrench.
2) Adjustment range: Back liftable angle: 0-75°
Leg position liftable angle: +25° to -75°
Lifting angle of rollover: 0-60°
3) Shake handle:
With metal spiral design, the surface of the handle is electroplated, foldable, firm and practical.
4) Joystick:
The rocker has a two-way over-shake protection device, which will not be damaged due to over-shake and increase its service life. The rocker cartridge is made of steel, which is anti-breakage, has high support force, high wear resistance, safe and reliable, easy to use without noise, guarantees smooth use, and has a dust cover.
5) Aluminum alloy guardrail:
The total length of the side guardrail is 1150mm, the D-type aluminum alloy handrail, surface hardening treatment, 4 stainless steel guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 2.5mm, the switch is carefully designed to ensure the safety of long-term use, with anti-loosening fasteners , Wear-resistant, not deformed, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6) Headboard and footboard:
It is made of ABS engineering plastics, with blue dotted in the middle. It is molded by one-time injection molding, which is fade-resistant, aging-resistant, corrosion-resistant and easy to clean. A transparent medical record card is mounted on the footboard. The head and foot of the bed can be disassembled freely without any tools.
7) Moving silent casters:
Easy to move freely; at the same time, there is a brake device to fix the bed, the diameter of the mobile casters is 12cm, and the built-in double
Bearings, forks are formed by one-time stamping of cold plate 2.5mm (thickness), and the tread is soft tread.
8) Mattress:
Double-layer mattress cover: The outer layer is made of pure cotton cloth, and the inner layer of waterproof cloth cover can prevent liquid from contaminating the inner tank. The liner material is made of 4 cm hard brown silk with good air permeability, 2 cm high-density sponge with good resilience, and has been treated with insect repellent. It has a beautiful appearance and is easy to remove and wash.
9) Open the door in 1 second:
The load-bearing material of the commode door adopts a solid steel rod with a diameter of 20mm, which can effectively support the strength of the buttocks and ensure that there will be no sinking or non-returning phenomenon after long-term use. The bedside mattress and the bedside position are designed to be glued together. There is no need to move the nursing staff when taking the toilet. When the mattress is removed, and the quick bedside device is used, the bedside bed can be opened within 1 second, realizing zero waiting. It is also equipped with an adjustable height device. If the toilet mouth sinks during use, it can be adjusted and restored to its original position. The load-bearing plate of the container under the convenient mouth is formed by one-time stamping of a steel plate with a thickness of 1.2mm, which is safe and reliable as a whole.
10) Leg weight bearing:
The support material is a round tube with a diameter of 32mm and a thickness of 2.75mm, which can bear a weight of 100kg, which is safe, reliable and will not deform after long-term use.
11) Back lift pulley design:
Equipped with 4 widening pulleys to avoid noise and damage to the bed caused by friction between the beds for a long time. Reduce friction and reduce the burden of nursing staff.
12) Rounded corner frame design:
The rounded frame design is not only beautiful and beautiful, but also increases the integrity of the entire frame, and avoids scratches on the futon mattress during use.
13) The infusion stand is a lifting type, and the height can be adjusted according to user needs. The supervisor is made of high-quality 430 stainless steel tube with three hooks, which can carry out multiple infusions at the same time, and can be folded and stored at the head of the bed when not in use.
14) Leg contact pulley design
When the legs are lowered to contact the ground, the small black wheels at the bottom of the legs roll with the ground to avoid scratching the floor.
15) The bed body can carry a weight of 300kg.
3. Material:
1) The bed top adopts a 40×60 square tube with a thickness of 1.2mm. The bed surface adopts a 15×30 square tube with a thickness of 1.2mm. The bed connection parts are all stamped and formed by thick-walled pipes with a thickness of 2.75mm or more or 3mm cold plates.
2) Welding process;
The bed frame and bed surface are welded by robot, the welding is firm, and the welding place is smooth and durable.
3) Bed spraying process:
The surface of the bed body is electrostatically sprayed after steel shot blasting to remove rust, and the bed body is coated with antistatic powder, which is resistant to acid and alkali corrosion and fading.
4. Product configuration
Quiet wheel, aluminum alloy guardrail, dining table, 6 cm mattress, colorful cotton bed cover, shampoo basin, bedpan, infusion stand, ABS bed head and foot end, manual, warranty card
5. Product packaging
1) Because the steel used for the nursing bed should be thick, the weight of the product itself should reach 95kg. In order to ensure that the product can reach the customer's hands in good condition, the packaging of Yonghui nursing bed is made of special thickened corrugated boxes with built-in double layers. backing plate.
2) The product packaging quantity is divided into 2 pieces,
Bed box size; length 1500 width 970 height 430
Bedside box size: length 970 width 140 height 550
The total volume is 0.68 cubic
Product parameter training
1. C05S product parameters
This product is a manual full-curved leg nursing bed
1. C05S Specifications:
Dimensions: Length 2100mm, bed width 1100mm, bed standard height 560mm.
Size of toilet hole: 310X230mm
2. Function:
1) The number of cranks is 3, 1 for manual turning left and right, 1 for manual back-lifting, 1 for manual leg lift, and 1 for sitting and toilet changing into a quick wrench.
2) Overall rollover function
The turning effect of this product is that the bed is turned left and right as a whole, and the angle can be adjusted at will according to needs, the speed is gentle, and the angle is reasonable
3) Adjustment range: the back can be raised and lowered angle: 0-75°
Leg position liftable angle: +25° to -75°
Lifting angle of rollover: 0-60°
4) Shaking handle:
With metal spiral design, the surface of the handle is electroplated, foldable, firm and practical.
5) Joystick:
The rocker has a two-way over-shake protection device, which will not be damaged due to over-shake and increase its service life. The rocker cartridge is made of steel, which is anti-breakage, has high support force, high wear resistance, safe and reliable, easy to use without noise, guarantees smooth use, and has a dust cover.
6) ABS large guardrail
Side guardrail ABS plastic lifting guardrail, the total length is 1100mm, can be lifted up and down, there is a pneumatic deceleration device during the descending process to prevent injury to personnel during the descending process, and it is slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting .
7) Headboard and footboard:
It is made of ABS engineering plastics, with blue dotted in the middle. It is molded by one-time injection molding, which is fade-resistant, aging-resistant, corrosion-resistant and easy to clean. A transparent medical record card is mounted on the footboard. The head and foot of the bed can be disassembled freely without any tools.
8) Moving silent casters:
Easy to move freely; at the same time, there is a brake device to fix the bed, the diameter of the mobile casters is 12cm, and the built-in double
Bearings, forks are formed by one-time stamping of cold plate 2.5mm (thickness), and the tread is soft tread.
9) Mattress:
Double-layer mattress cover: The outer layer is made of pure cotton cloth, and the inner layer of waterproof cloth cover can prevent liquid from contaminating the inner tank. The liner material is made of 4 cm hard brown silk with good air permeability, 2 cm high-density sponge with good resilience, and has been treated with insect repellent. It has a beautiful appearance and is easy to remove and wash.
10) Open the door in 1 second:
The load-bearing material of the commode door adopts a solid steel rod with a diameter of 20mm, which can effectively support the strength of the buttocks and ensure that there will be no sinking or non-returning phenomenon after long-term use. The bedside mattress and the bedside position are designed to be glued together. There is no need to move the nursing staff when taking the toilet. When the mattress is removed, and the quick bedside device is used, the bedside bed can be opened within 1 second, realizing zero waiting. It is also equipped with an adjustable height device. If the toilet mouth sinks during use, it can be adjusted and restored to its original position. The load-bearing plate of the container under the convenient mouth is formed by one-time stamping of a steel plate with a thickness of 1.2mm, which is safe and reliable as a whole.
11) Leg weight bearing:
The supporting material is a round tube with a diameter of 38mm and a thickness of 5mm, which can bear a weight of 100kg, which is safe, reliable, and will not deform after long-term use.
12) Back lift pulley design:
Equipped with 4 widening pulleys to avoid noise and damage to the bed caused by friction between the beds for a long time. Reduce friction and reduce the burden of nursing staff.
13) Rounded corner frame design:
The rounded frame design is not only beautiful and beautiful, but also increases the integrity of the entire frame, and avoids scratches on the futon mattress during use.
14) The infusion stand is a lifting type, and the height can be adjusted according to user needs. The supervisor is made of high-quality 430 stainless steel tube with three hooks, which can carry out multiple infusions at the same time, and can be folded and stored at the head of the bed when not in use.
15) The bed body can carry a weight of 300kg.
3. Material:
1) The bed top adopts a 40×60 square tube with a thickness of 1.2mm. The bed surface adopts a 15×30 square tube with a thickness of 1.2mm. The bed connection parts are all stamped and formed by thick-walled pipes with a thickness of 2.75mm or more or 3mm cold plates.
2) Welding process;
The bed frame and bed surface are fully welded by robot, the welding is firm, the welding place is smooth and durable.
3) Bed spraying process:
The surface of the bed body is electrostatically sprayed after steel shot blasting to remove rust, and the bed body is coated with antistatic powder, which is resistant to acid and alkali corrosion and fading.
4. Product configuration
Quiet wheel, ABS large guardrail, dining table, 6 cm mattress, colorful cotton bedspread, shampoo basin, bedpan, infusion stand, ABS bed head and foot, manual, warranty card
Product parameters of PP guardrail with central control wheel
1. Product dimensions: length: 2100mm, width: 1050mm.
The back inclination angle is 0~75°, and the leg inclination angle: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed from cold steel plates, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. The four-piece split-type lifting ABS guardrail is installed on the bed panel and can act simultaneously with the function of the bed body. It can go up and down, and there is a pneumatic deceleration device during the descending process to prevent injury to personnel due to excessive speed during the descending process.
6. The streamlined European version of the headboard and tailboard is made of ABS reinforced plastic material. It is formed at one time, without gaps, easy to clean, and does not deform. It has a hidden lock switch, which is stable and reliable. Anti-collision function; symmetrical quick hook seat, which can be quickly disassembled.
7. It adopts high-grade central control casters with a diameter of 150MM, high bearing capacity, stable operation and no noise. The control function is realized by pressing and lifting the control bar. The built-in fully enclosed self-lubricating bearing does not require oil care and prevents foreign objects from getting involved. , Independent brake; wheel surface using TPR polymer wear-resistant material, wear-resistant, no noise.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
1. Anti-collision bed head PP four small guardrails, three shaker parameters
1. Product dimensions: length: 2100mm, width: 1050mm, height: 430-680mm.
2. The inclination angle of the back is 0~75°, and the inclination angle of the legs: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
3. Product materials: the upper and lower bed frames are both 60×30×1.2mm and are welded and formed by high-quality cold-rolled carbon steel pipe automatic welding robots. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
4. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed by cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
5. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
6. The four-piece split-type lifting ABS guardrail is installed on the bed panel and can act simultaneously with the function of the bed body. It can go up and down, and there is a pneumatic deceleration device during the descending process to prevent injury to personnel due to excessive speed during the descending process.
7. The headboard and footboard of the luxurious abs are made of high-grade engineering plastics, all the locking parts of the headboard are made of steel, and the symmetrical quick socket can be quickly disassembled. The middle hanging design is in line with the aesthetics. There are anti-collision wheels at the four corners.
8. The central control brake pedal, the caster has built-in precision bearings, the wheel column is 28mm, the double-sided wheel is made of polymer material, the diameter of the wheel surface is 125mm, dustproof, quiet and wear-resistant
9. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
10. The inner layer of the mattress is made of high-density sponge and machine-pressed positive brown Hainan coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation. The overall thickness of the mattress is 80mm, of which the sponge is 40mm and the coconut palm is 40mm. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash;
Three-shake hospital bed product parameters
1. Product dimensions: length: 2100mm, width: 960mm.
The back inclination angle is 0~75°, and the leg inclination angle: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts double support structure, and the double support is stamped and formed by cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. The total length of the side guardrail is 1400mm, D-type aluminum alloy handrail, surface hardening treatment, six aluminum alloy guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 3.0mm, the switch is carefully designed to ensure the safety of long-term use, equipped with Anti-loosening fasteners, wear-resistant, non-deformable, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6. The streamlined European version of the headboard and tailboard is made of ABS reinforced plastic material. It is formed at one time, without gaps, easy to clean, and does not deform. It has a hidden lock switch, which is stable and reliable. Anti-collision function; symmetrical quick hook seat, which can be quickly disassembled.
7. 5-inch high-grade casters are used, with built-in fully enclosed self-lubricating bearings, no need for refueling and nursing, preventing foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, resistant to acid and alkali corrosion, and resistant to color, effectively prolonging the service life.
9. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash; the inner layer is made of high-density sponge and machine-pressed coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation. ; The overall thickness of the mattress is 80mm, including 40mm of sponge and 40mm of coconut palm.
Product parameter training
1. C06-1 product parameters
This product is a manual full-curved leg nursing bed
1. C06-1 Specifications:
Dimensions: Length 2080mm, bed width 960mm, bed standard height 560mm.
Size of toilet hole: 310X230mm
2. Function:
1) The number of cranks is 4, the manual turning left and right is 2, the manual lifting is 1, the manual leg lift is 1, and the toilet is converted into a quick wrench.
2) Adjustment range: Back liftable angle: 0-75°
Leg position liftable angle: +25° to -75°
Lifting angle of rollover: 0-60°
3) Shake handle:
With metal spiral design, the surface of the handle is electroplated, foldable, firm and practical.
4) Joystick:
The rocker has a two-way over-shake protection device, which will not be damaged due to over-shake and increase its service life. The rocker cartridge is made of steel, which is anti-breakage, has high support force, high wear resistance, safe and reliable, easy to use without noise, guarantees smooth use, and has a dust cover.
5) Aluminum alloy guardrail:
The total length of the side guardrail is 1150mm, the D-type aluminum alloy handrail, surface hardening treatment, 4 stainless steel guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 2.5mm, the switch is carefully designed to ensure the safety of long-term use, with anti-loosening fasteners , Wear-resistant, not deformed, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6) Headboard and footboard:
It is made of ABS engineering plastics, with blue dotted in the middle. It is molded by one-time injection molding, which is fade-resistant, aging-resistant, corrosion-resistant and easy to clean. A transparent medical record card is mounted on the footboard. The head and foot of the bed can be disassembled freely without any tools.
7) Moving silent casters:
Easy to move freely; at the same time, there is a brake device to fix the bed, the diameter of the mobile casters is 12cm, and the built-in double
Bearings, forks are formed by one-time stamping of cold plate 2.5mm (thickness), and the tread is soft tread.
8) Mattress:
Double-layer mattress cover: The outer layer is made of pure cotton cloth, and the inner layer of waterproof cloth cover can prevent liquid from contaminating the inner tank. The liner material is made of 4 cm hard brown silk with good air permeability, 2 cm high-density sponge with good resilience, and has been treated with insect repellent. It has a beautiful appearance and is easy to remove and wash.
9) Open the door in 1 second:
The load-bearing material of the commode door adopts a solid steel rod with a diameter of 20mm, which can effectively support the strength of the buttocks and ensure that there will be no sinking or non-returning phenomenon after long-term use. The bedside mattress and the bedside position are designed to be glued together. There is no need to move the nursing staff when taking the toilet. When the mattress is removed, and the quick bedside device is used, the bedside bed can be opened within 1 second, realizing zero waiting. It is also equipped with an adjustable height device. If the toilet mouth sinks during use, it can be adjusted and restored to its original position. The load-bearing plate of the container under the convenient mouth is formed by one-time stamping of a steel plate with a thickness of 1.2mm, which is safe and reliable as a whole.
10) Leg weight bearing:
The support material is a round tube with a diameter of 32mm and a thickness of 2.75mm, which can bear a weight of 100kg, which is safe, reliable and will not deform after long-term use.
11) Back lift pulley design:
Equipped with 4 widening pulleys to avoid noise and damage to the bed caused by friction between the beds for a long time. Reduce friction and reduce the burden of nursing staff.
12) Rounded corner frame design:
The rounded frame design is not only beautiful and beautiful, but also increases the integrity of the entire frame, and avoids scratches on the futon mattress during use.
13) The infusion stand is a lifting type, and the height can be adjusted according to user needs. The supervisor is made of high-quality 430 stainless steel tube with three hooks, which can carry out multiple infusions at the same time, and can be folded and stored at the head of the bed when not in use.
14) Leg contact pulley design
When the legs are lowered to contact the ground, the small black wheels at the bottom of the legs roll with the ground to avoid scratching the floor.
15) The bed body can carry a weight of 300kg.
3. Material:
1) The bed top adopts a 40×60 square tube with a thickness of 1.2mm. The bed surface adopts a 15×30 square tube with a thickness of 1.2mm. The bed connection parts are all stamped and formed by thick-walled pipes with a thickness of 2.75mm or more or 3mm cold plates.
2) Welding process;
The bed frame and bed surface are welded by robot, the welding is firm, and the welding place is smooth and durable.
3) Bed spraying process:
The surface of the bed body is electrostatically sprayed after steel shot blasting to remove rust, and the bed body is coated with antistatic powder, which is resistant to acid and alkali corrosion and fading.
4. Product configuration
Quiet wheel, aluminum alloy guardrail, dining table, 6 cm mattress, colorful cotton bed cover, shampoo basin, bedpan, infusion stand, ABS bed head and foot end, manual, warranty card
5. Product packaging
1) Because the steel used for the nursing bed should be thick, the weight of the product itself should reach 95kg. In order to ensure that the product can reach the customer's hands in good condition, the packaging of Yonghui nursing bed is made of special thickened corrugated boxes with built-in double layers. backing plate.
2) The product packaging quantity is divided into 2 pieces,
Bed box size; length 1500 width 970 height 430
Bedside box size: length 970 width 140 height 550
The total volume is 0.68 cubic
Product parameter training
1. C05S product parameters
This product is a manual full-curved leg nursing bed
1. C05S Specifications:
Dimensions: Length 2100mm, bed width 1100mm, bed standard height 560mm.
Size of toilet hole: 310X230mm
2. Function:
1) The number of cranks is 3, 1 for manual turning left and right, 1 for manual back-lifting, 1 for manual leg lift, and 1 for sitting and toilet changing into a quick wrench.
2) Overall rollover function
The turning effect of this product is that the bed is turned left and right as a whole, and the angle can be adjusted at will according to needs, the speed is gentle, and the angle is reasonable
3) Adjustment range: the back can be raised and lowered angle: 0-75°
Leg position liftable angle: +25° to -75°
Lifting angle of rollover: 0-60°
4) Shaking handle:
With metal spiral design, the surface of the handle is electroplated, foldable, firm and practical.
5) Joystick:
The rocker has a two-way over-shake protection device, which will not be damaged due to over-shake and increase its service life. The rocker cartridge is made of steel, which is anti-breakage, has high support force, high wear resistance, safe and reliable, easy to use without noise, guarantees smooth use, and has a dust cover.
6) ABS large guardrail
Side guardrail ABS plastic lifting guardrail, the total length is 1100mm, can be lifted up and down, there is a pneumatic deceleration device during the descending process to prevent injury to personnel during the descending process, and it is slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting .
7) Headboard and footboard:
It is made of ABS engineering plastics, with blue dotted in the middle. It is molded by one-time injection molding, which is fade-resistant, aging-resistant, corrosion-resistant and easy to clean. A transparent medical record card is mounted on the footboard. The head and foot of the bed can be disassembled freely without any tools.
8) Moving silent casters:
Easy to move freely; at the same time, there is a brake device to fix the bed, the diameter of the mobile casters is 12cm, and the built-in double
Bearings, forks are formed by one-time stamping of cold plate 2.5mm (thickness), and the tread is soft tread.
9) Mattress:
Double-layer mattress cover: The outer layer is made of pure cotton cloth, and the inner layer of waterproof cloth cover can prevent liquid from contaminating the inner tank. The liner material is made of 4 cm hard brown silk with good air permeability, 2 cm high-density sponge with good resilience, and has been treated with insect repellent. It has a beautiful appearance and is easy to remove and wash.
10) Open the door in 1 second:
The load-bearing material of the commode door adopts a solid steel rod with a diameter of 20mm, which can effectively support the strength of the buttocks and ensure that there will be no sinking or non-returning phenomenon after long-term use. The bedside mattress and the bedside position are designed to be glued together. There is no need to move the nursing staff when taking the toilet. When the mattress is removed, and the quick bedside device is used, the bedside bed can be opened within 1 second, realizing zero waiting. It is also equipped with an adjustable height device. If the toilet mouth sinks during use, it can be adjusted and restored to its original position. The load-bearing plate of the container under the convenient mouth is formed by one-time stamping of a steel plate with a thickness of 1.2mm, which is safe and reliable as a whole.
11) Leg weight bearing:
The supporting material is a round tube with a diameter of 38mm and a thickness of 5mm, which can bear a weight of 100kg, which is safe, reliable, and will not deform after long-term use.
12) Back lift pulley design:
Equipped with 4 widening pulleys to avoid noise and damage to the bed caused by friction between the beds for a long time. Reduce friction and reduce the burden of nursing staff.
13) Rounded corner frame design:
The rounded frame design is not only beautiful and beautiful, but also increases the integrity of the entire frame, and avoids scratches on the futon mattress during use.
14) The infusion stand is a lifting type, and the height can be adjusted according to user needs. The supervisor is made of high-quality 430 stainless steel tube with three hooks, which can carry out multiple infusions at the same time, and can be folded and stored at the head of the bed when not in use.
15) The bed body can carry a weight of 300kg.
3. Material:
1) The bed top adopts a 40×60 square tube with a thickness of 1.2mm. The bed surface adopts a 15×30 square tube with a thickness of 1.2mm. The bed connection parts are all stamped and formed by thick-walled pipes with a thickness of 2.75mm or more or 3mm cold plates.
2) Welding process;
The bed frame and bed surface are fully welded by robot, the welding is firm, the welding place is smooth and durable.
3) Bed spraying process:
The surface of the bed body is electrostatically sprayed after steel shot blasting to remove rust, and the bed body is coated with antistatic powder, which is resistant to acid and alkali corrosion and fading.
4. Product configuration
Quiet wheel, ABS large guardrail, dining table, 6 cm mattress, colorful cotton bedspread, shampoo basin, bedpan, infusion stand, ABS bed head and foot, manual, warranty card
Product parameters of PP guardrail with central control wheel
1. Product dimensions: length: 2100mm, width: 1050mm.
The back inclination angle is 0~75°, and the leg inclination angle: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed from cold steel plates, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. The four-piece split-type lifting ABS guardrail is installed on the bed panel and can act simultaneously with the function of the bed body. It can go up and down, and there is a pneumatic deceleration device during the descending process to prevent injury to personnel due to excessive speed during the descending process.
6. The streamlined European version of the headboard and tailboard is made of ABS reinforced plastic material. It is formed at one time, without gaps, easy to clean, and does not deform. It has a hidden lock switch, which is stable and reliable. Anti-collision function; symmetrical quick hook seat, which can be quickly disassembled.
7. It adopts high-grade central control casters with a diameter of 150MM, high bearing capacity, stable operation and no noise. The control function is realized by pressing and lifting the control bar. The built-in fully enclosed self-lubricating bearing does not require oil care and prevents foreign objects from getting involved. , Independent brake; wheel surface using TPR polymer wear-resistant material, wear-resistant, no noise.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
1. Anti-collision bed head PP four small guardrails, three shaker parameters
1. Product dimensions: length: 2100mm, width: 1050mm, height: 430-680mm.
2. The inclination angle of the back is 0~75°, and the inclination angle of the legs: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
3. Product materials: the upper and lower bed frames are both 60×30×1.2mm and are welded and formed by high-quality cold-rolled carbon steel pipe automatic welding robots. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
4. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed by cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
5. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
6. The four-piece split-type lifting ABS guardrail is installed on the bed panel and can act simultaneously with the function of the bed body. It can go up and down, and there is a pneumatic deceleration device during the descending process to prevent injury to personnel due to excessive speed during the descending process.
7. The headboard and footboard of the luxurious abs are made of high-grade engineering plastics, all the locking parts of the headboard are made of steel, and the symmetrical quick socket can be quickly disassembled. The middle hanging design is in line with the aesthetics. There are anti-collision wheels at the four corners.
8. The central control brake pedal, the caster has built-in precision bearings, the wheel column is 28mm, the double-sided wheel is made of polymer material, the diameter of the wheel surface is 125mm, dustproof, quiet and wear-resistant
9. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
10. The inner layer of the mattress is made of high-density sponge and machine-pressed positive brown Hainan coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation. The overall thickness of the mattress is 80mm, of which the sponge is 40mm and the coconut palm is 40mm. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash;
Three-shake hospital bed product parameters
1. Product dimensions: length: 2100mm, width: 960mm.
The back inclination angle is 0~75°, and the leg inclination angle: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts double support structure, and the double support is stamped and formed by cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. The total length of the side guardrail is 1400mm, D-type aluminum alloy handrail, surface hardening treatment, six aluminum alloy guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 3.0mm, the switch is carefully designed to ensure the safety of long-term use, equipped with Anti-loosening fasteners, wear-resistant, non-deformable, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6. The streamlined European version of the headboard and tailboard is made of ABS reinforced plastic material. It is formed at one time, without gaps, easy to clean, and does not deform. It has a hidden lock switch, which is stable and reliable. Anti-collision function; symmetrical quick hook seat, which can be quickly disassembled.
7. 5-inch high-grade casters are used, with built-in fully enclosed self-lubricating bearings, no need for refueling and nursing, preventing foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, resistant to acid and alkali corrosion, and resistant to color, effectively prolonging the service life.
9. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash; the inner layer is made of high-density sponge and machine-pressed coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation. ; The overall thickness of the mattress is 80mm, including 40mm of sponge and 40mm of coconut palm.
