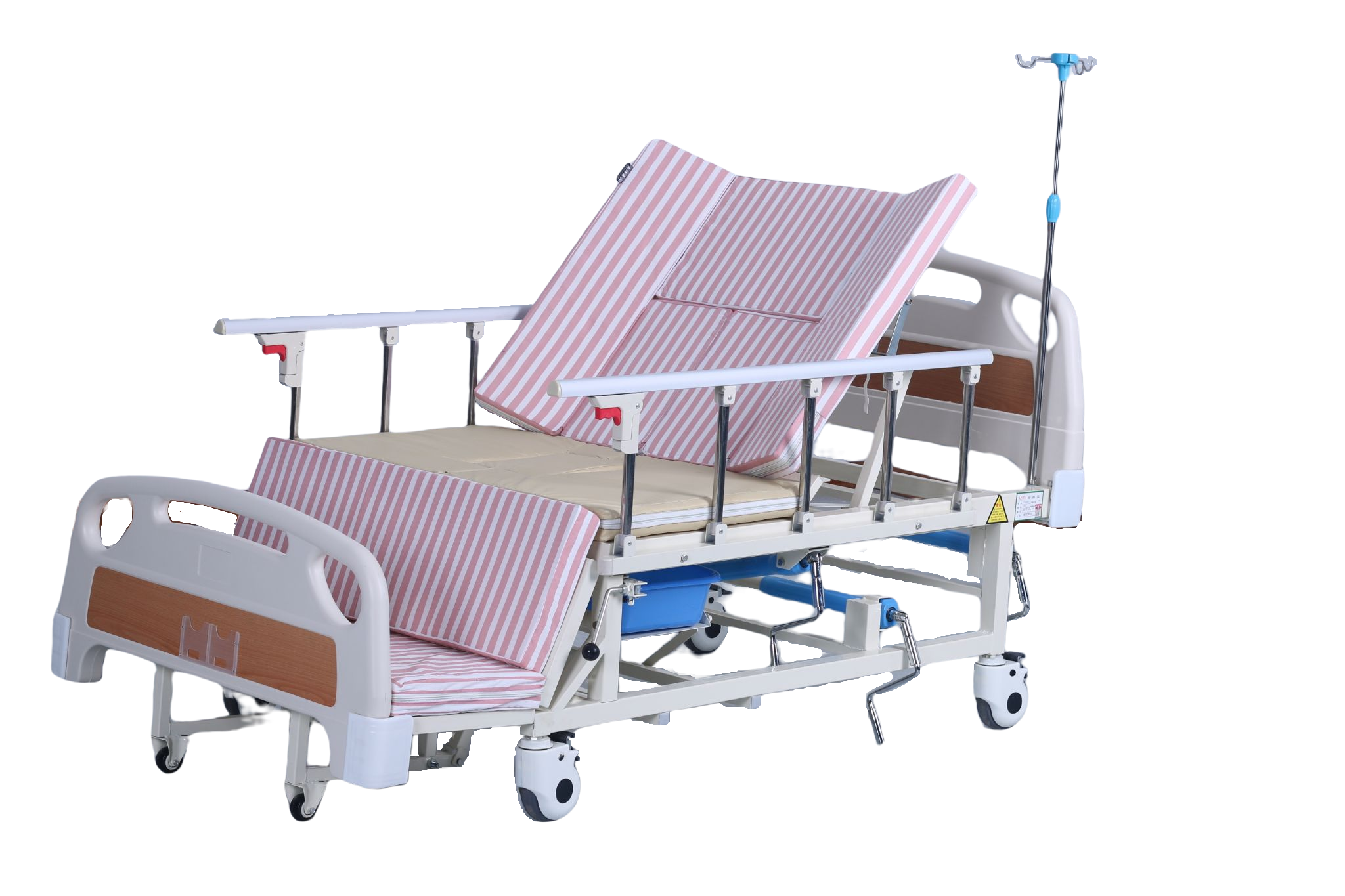

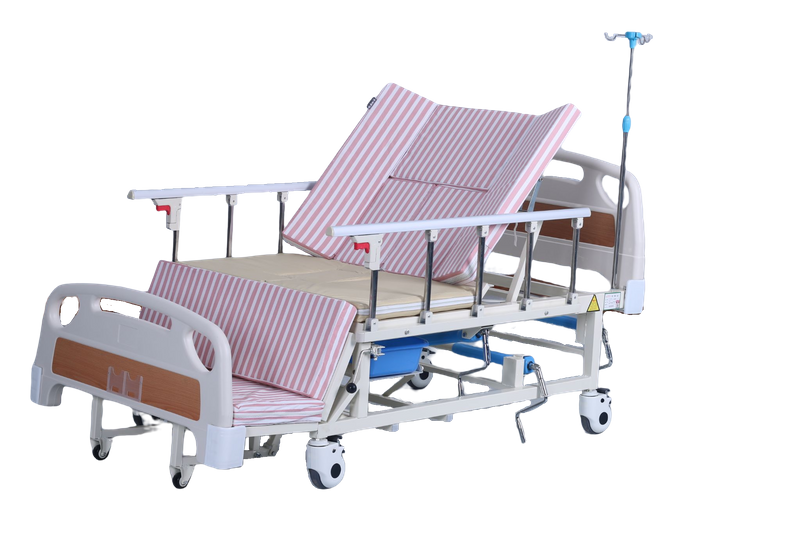

LSYA-C07-1 Manual Full Curve Nursing Bed
1. C07 Specifications:
Dimensions: Length 2080mm, bed width 960mm, bed standard height 560mm.
Size of toilet hole: 310X230mm
2. Functions: manual turning left and right, manual back up, manual leg lift, back up and anti-slip
1) Adjustment range: Back liftable angle: 0-75°
Leg position liftable angle: +25° to -75°
Lifting angle of rollover: 0-60°
3) Shake handle:
With metal spiral design, the surface of the handle is electroplated, foldable, firm and practical.
4) Joystick:
The rocker cartridge is made of steel, which is anti-breakage, has high support force, high wear resistance, safe and reliable, easy to use without noise, guarantees smooth use, and has a dust cover.
5) Aluminum alloy guardrail:
The total length of the side guardrail is 1150mm, D-type aluminum alloy handrail, surface hardening treatment, 5 stainless steel guardrail pillars,
The upper and lower connecting parts are made of one-time stamping and forming steel parts, with a thickness of 2.5mm. The switch is carefully designed to ensure the safety of long-term use. It is equipped with anti-loosening fasteners, which are wear-resistant and non-deformable. Prevent the mattress from shifting.
6) Headboard and footboard:
It is made of ABS engineering plastic, with yellow dots in the middle. It is molded by one-time injection molding with a mold, which is resistant to fading, aging, corrosion and easy to clean. A transparent medical record card is mounted on the footboard. The head and foot of the bed can be disassembled freely without any tools.
7) Moving silent casters:
Easy to move freely; at the same time, there is a brake device to fix the bed, the diameter of the mobile casters is 12cm, and the built-in double
Bearings, forks are formed by one-time stamping of cold plate 2.5mm (thickness), and the tread is soft tread.
8) Mattress:
The outer cover of the mattress is made of pure cotton fabric, which is comfortable and soft. The inner liner is made of 6 cm high-density compressed cotton, which has good resilience, and has been treated with insect repellent. It is not deformed after long-term use, and has good air permeability.
9) Open the door in 1 second:
The load-bearing material of the commode door adopts a solid steel rod with a diameter of 20mm, which can effectively support the strength of the buttocks and ensure that there will be no sinking or non-returning phenomenon after long-term use. The bedside mattress and the bedside position are designed to be glued together. There is no need to move the nursing staff when taking the toilet. When the mattress is removed, and the quick bedside device is used, the bedside bed can be opened within 1 second, realizing zero waiting. It is also equipped with an adjustable height device. If the toilet mouth sinks during use, it can be adjusted and restored to its original position. The load-bearing plate of the container under the convenient mouth is formed by one-time stamping of a steel plate with a thickness of 1.2mm, which is safe and reliable as a whole.
10) Leg weight bearing:
The support material is a round tube with a diameter of 32mm and a thickness of 2.75mm, which can bear a weight of 100kg, which is safe, reliable and will not deform after long-term use.
11) Anti-skid function
As the sitting-up angle of the human body continues to increase, the bed boards on both sides move inward in a semi-enclosed form, preventing the care recipient from leaning to both sides.
12) Back lift pulley design:
Equipped with 4 widening pulleys to avoid noise and damage to the bed caused by friction between the beds for a long time. Reduce friction and reduce the burden of nursing staff.
13) Left and right turn over pulley design:
The rotating pulley is equipped when turning left and right, which can reduce frictional resistance and increase service life.
14) Rounded corner frame design:
The rounded frame design is not only beautiful and beautiful, but also increases the integrity of the entire frame, and avoids scratches on the futon mattress during use.
15) The infusion stand is a lifting type, and the height can be adjusted according to user needs. The supervisor is made of high-quality 430 stainless steel tube with three hooks, which can carry out multiple infusions at the same time, and can be folded and stored at the head of the bed when not in use.
16) Leg contact pulley design
When the legs are lowered to contact the ground, the small black wheels at the bottom of the legs roll with the ground to avoid scratching the floor.
17) The bed body can carry a weight of 300kg.
3. Material:
1) The bed top adopts a 40×60 square tube with a thickness of 1.2mm. The bed surface adopts a 15×30 square tube with a thickness of 1.2mm. The bed connection parts are all stamped and formed by thick-walled pipes with a thickness of 2.75mm or more or 3mm cold plates.
2) Welding process;
The bed frame and bed surface are fully welded by robot, the welding is firm, the welding place is smooth and durable.
3) Bed spraying process:
The surface of the bed body is electrostatically sprayed after steel shot blasting to remove rust, and the bed body is coated with antistatic powder, which is resistant to acid and alkali corrosion and fading.
4. Product configuration
Quiet wheel, aluminum alloy guardrail, dining table, 6 cm mattress, colorful cotton bedspread, shampoo basin, bedpan, infusion stand, ABS bed head and foot end, manual, warranty
