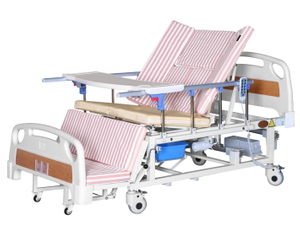

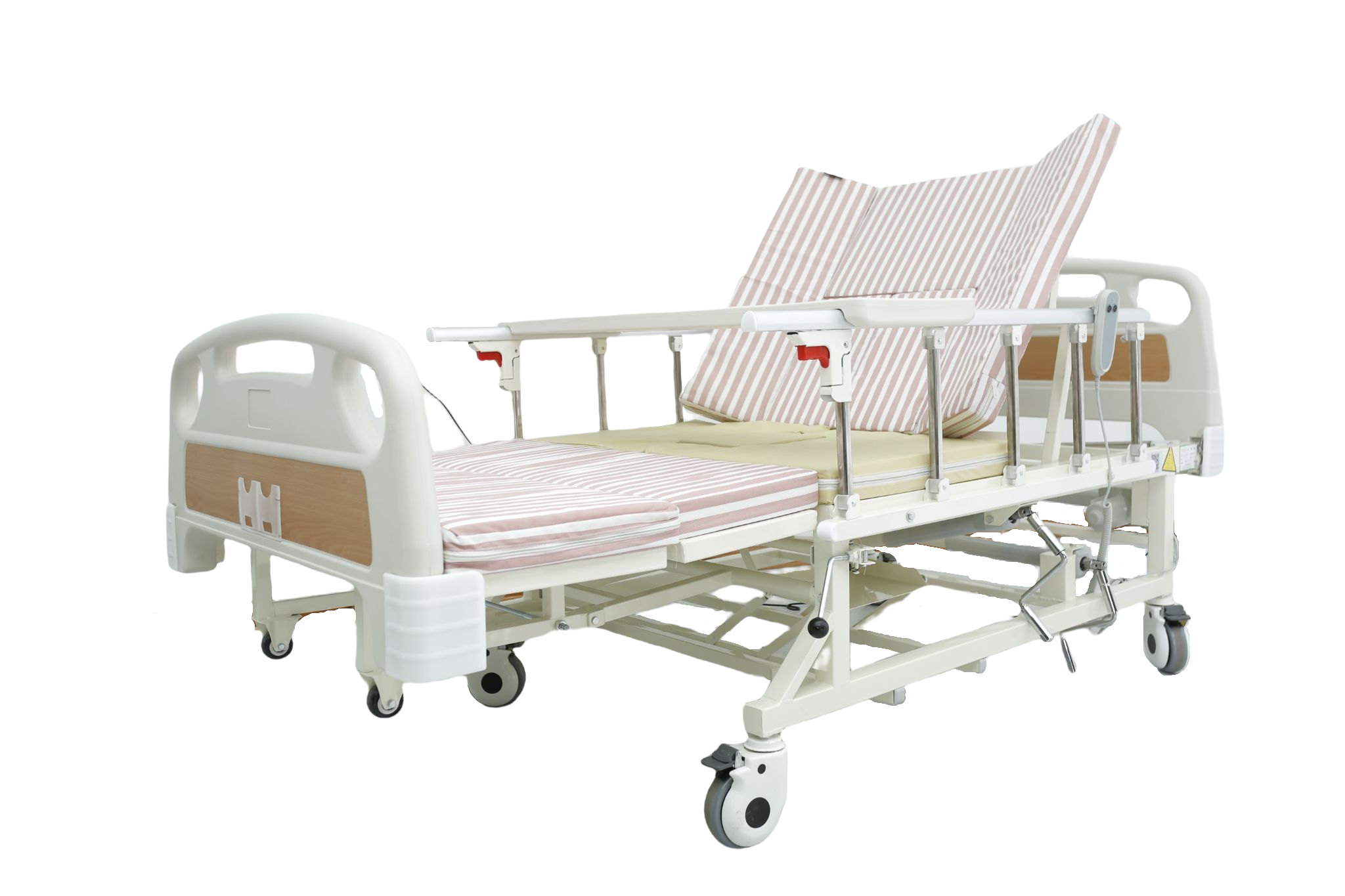

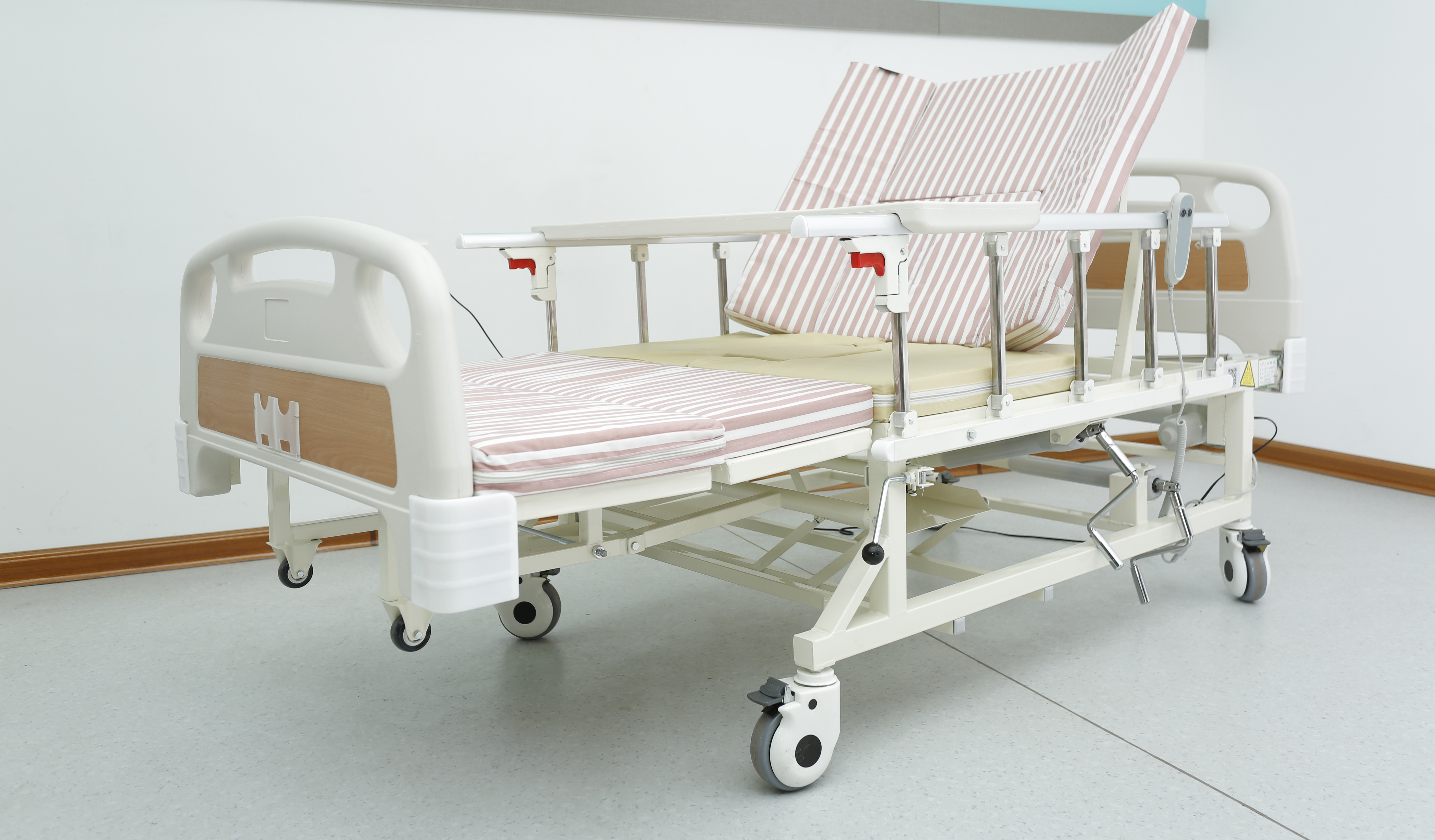

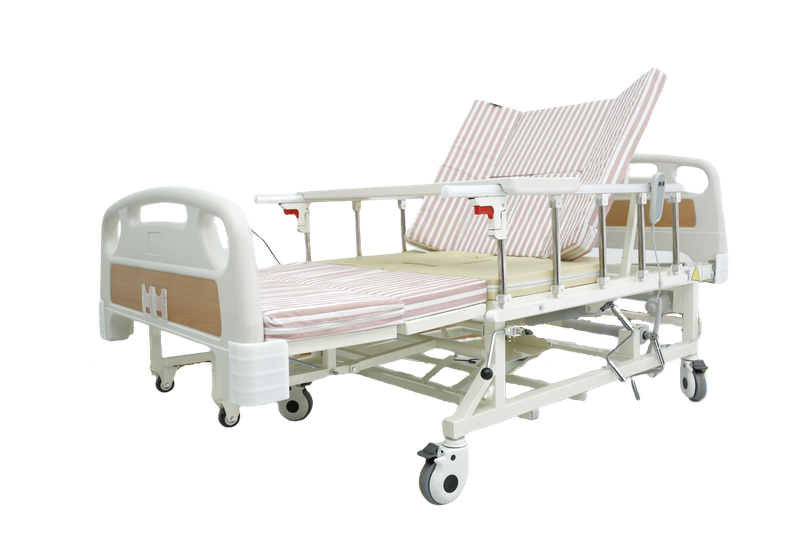

LSYA-C07D Electric backlift nursing bed
I. Product parameters
This product is an electric full leg flexure nursing bed
1. C07D specifications:
Size gauge: length 2080mm, bed width 960mm, bed body standard height 560mm.
Stool hole size: 310X230mm
2. Functions:
1) The number of motors is 1, and the back is controlled; The number of rockers is 2, manual turning left and right is 1, manual leg position lifting is 1, and sitting stool is converted to fast plate hand.
2) Adjustment range: back can be lifted Angle: 0-75°
Leg position can be raised or lowered from +25° to -75°
Side turning up and down Angle: 0-60°
3) Handle:
Metal screw design, electroplating handle surface, foldable, firm and practical.
4) Rocker:
Rocker shell box is made of steel parts, anti-cracking, with high support, high wear resistance, safe and reliable, easy to use, no noise, ensure smooth use, with dustproof sleeve.
5) aluminum alloy guardrail:
's side fence is 1150 mm, armrest, D type aluminum alloy surface hardening treatment, 5 pieces of stainless steel barrier pillars, and connectors used a steel stamping parts, the thickness of 3.0 mm, switch is designed to ensure the safety of long-term use, equipped with elastic firmware prevention, wear-resisting, not deformation, retractable flat, contracting slightly above the bed surface, can prevent the displacement of the mattress.
6) Headboard and tail board:
ABS engineering plastic, dotted with yellow mold injection molding, fade resistance, aging resistance, corrosion resistance and easy to clean. A transparent medical record card is installed at the end of the bed, and it is engraved with the brand of Yonghui Medical. The head of the bed and the end of the bed can be disassembled freely without the help of any tools.
7) Silent Wheel:
Convenient free movement; At the same time with a brake device to fix the bed, the diameter of the caster 12cm, built-in double
Bearing, fork adopts cold plate 2.5mm (thickness) stamping molding, to ensure the long service life of products.
8) mattress:
The outer cover of the mattress is made of pure cotton cloth, which is comfortable and soft. The inner liner is made of 6cm high elastic sponge, which has good resilience and insect-proof treatment. It will not be deformed in long-term use and has good air permeability.
9) Open the door in one second:
The load-bearing material of the urinal door is a solid steel rod with a diameter of 20mm, which can effectively support the hip strength and ensure that there will be no subsidence and no return after long-term use. The position of the toilet mouth mattress and the toilet mouth adopts sticky and design, so that there is no need to move the nursing staff when taking the toilet. The mattress can be taken away with the fast toilet catching device, so that the toilet mouth can be opened within 1 second, so as to realize the real zero waiting. And equipped with adjustable height device, such as in the process of using the mouth subsidence, can be adjusted to restore the original position. The bearing plate of the container under the mouth is formed by the steel plate with a thickness of 1.2mm, which is safe and reliable.
10) Leg weight bearing:
The supporting material is a round tube with a diameter of 38mm and a thickness of 5mm, which can withstand the weight of 100kg safely, securely and without deformation after long-term use.

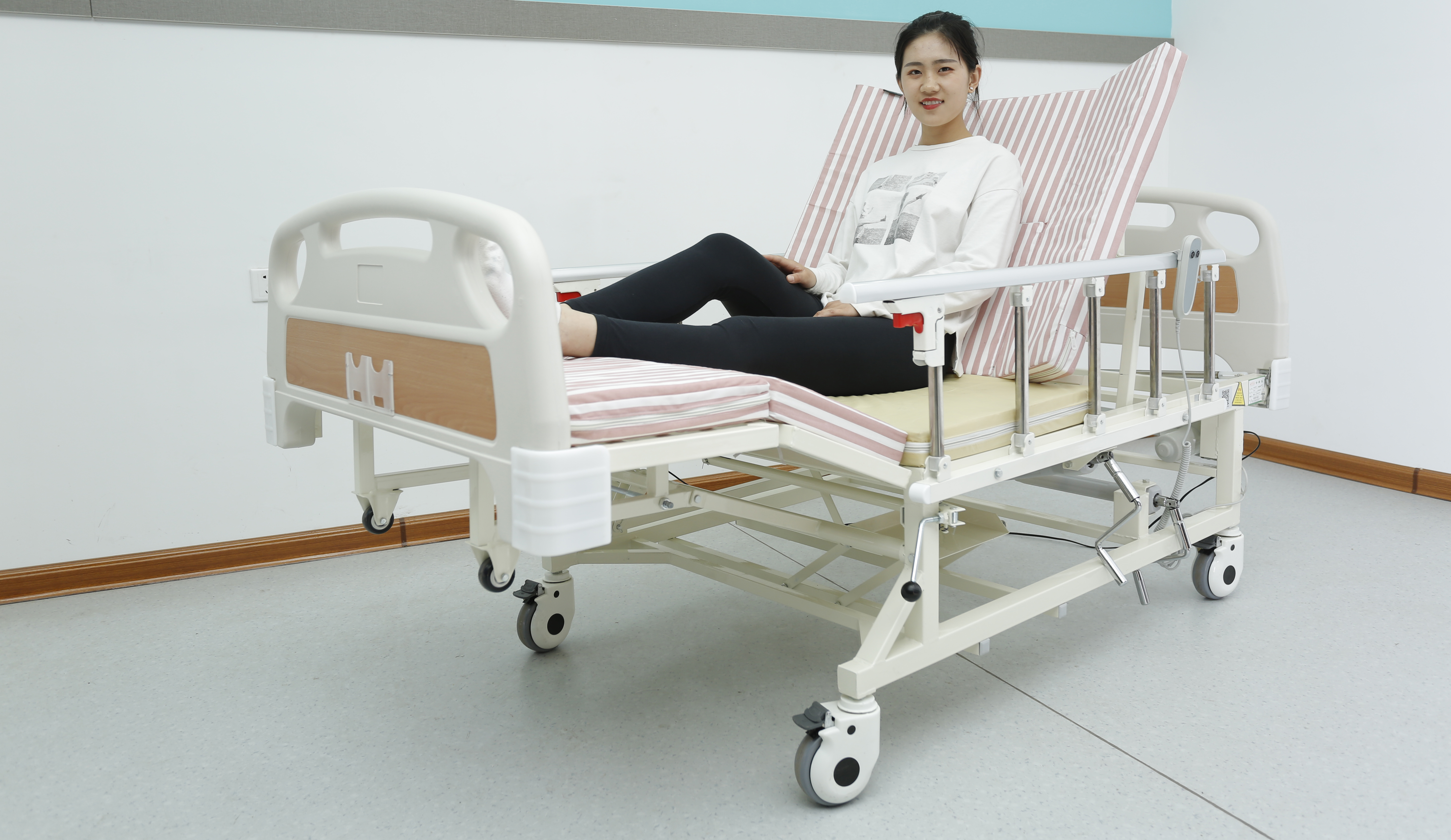

11) Back lifting pulley design:
It is equipped with 4 wide pulleys to avoid noise and damage caused by friction between bed bodies for a long time. Reduce friction, reduce the burden of nursing staff.
12) Design of turning pulley:
In the left and right turn over when equipped with rotating pulley, can reduce friction resistance, increase service life.
13) Rounded frame design:
The rounded frame design is not simple and beautiful, but also increases the integrity of the whole frame, and avoids scratches on the bedding and mattress when using.
14) The infusion stand is of lifting type, and the height can be adjusted according to user's requirements. The supervisor IS MADE OF HIGH quality 430 STAINLESS steel tube, with three hooks, which can carry out multiple bottles of infusion at the same time, and can be folded and stored at the head of the bed when not in use.
15) Design of leg touchdown pulley
When THE leg descends to CONTACT WITH the GROUND, THE small black wheel at the bottom of the leg is equipped to roll with the ground to avoid scratching the floor.
16) The bed body can bear weight of 300㎏.
17) Back anti side slide function
With the increase of the human sitting Angle, the two sides of the bed plate inward movement, semi-surrounded form, to avoid the nurse to tilt to both sides.
3. Material:
1) Bed bed adopts 40×60 square tube with a thickness of 1.2mm. The bed surface is made of 15×30 square tubes with a thickness of 1.2mm. Bed connectors are made of thick wall 2.75mm pipe or 3mm cold plate.
2) Welding process;
The bed frame and bed surface are welded by robot, welding is firm, welding is smooth and durable.
3) Bed spraying process:
The surface of the bed after two degrees of pickling phosphating, electrostatic spraying, bed coated with antistatic powder, acid and alkali corrosion resistance, fade resistance.
4. Product configuration
Silent wheel, aluminum alloy guardrail, dining table, 6cm mattress, colored cotton bedspread, shampoo basin, bedpan, infusion stand, ABS head and tail, manual, warranty card
5. Product packaging
1) Because the steel used by Yonghui nursing bed should be thick, so the weight of the product should reach 100kg. In order to ensure that the product can reach the hands of customers in good condition, the packaging of Yonghui nursing bed is made of special thickened corrugated carton, and the built-in double pad.
2) The quantity of product packaging is divided into 2 pieces.
Bed packing box size; 1500 long 970 wide 430 high
Headcase dimensions: 970 x 140 x 550
The total volume is 0.68 cubic
