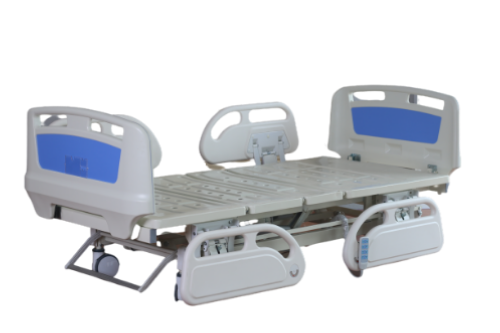

LSYA-D30 Electric Three Functions in The Hanging Bed Four Small Fence Central Control Wheel
Electric three function hospital bed product parameters
1. The overall size of the product is about: length :2100mm, width :1050mm.

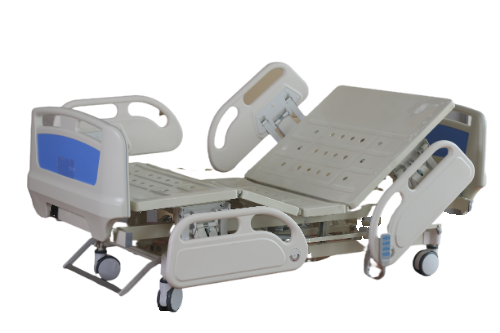

Back tilt Angle 0 ~ 75°, leg tilt Angle: 0 ~ 40° overall lifting adjustment range 430mm- 680mm.
2. Product materials: The upper and lower bed frames are 60×30×1.2mm welded by high-quality cold-rolled carbon steel pipe automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate as a whole. The inner sides and center of the bed plate are welded with 40×20×1.2mm cold-rolled carbon steel pipe to strengthen the structure, improve the strength of the bed plate, solid and durable, balanced force and strong pressure resistance. And with air hole, and anti-slip function.
3, the bed body can carry 200Kg; The bed surface on the back adopts a reinforced structure to strengthen the bearing force of the backboard. The rocker can bear little pressure and save effort when shaking.
4, the motor adopts CE certified low voltage DC silent motor, to ensure the safety of long-term use, low noise, and through 3 years of warranty.
5, four split lifting ABS guardrail, installed on the bed panel, can move with the function of the bed body. Can be up and down, down the process of a pneumatic deceleration device, to prevent in the process of falling too fast to cause harm to personnel.
6, streamlined European version head and tail board using ABS reinforced plastic material, a forming, no gap, easy to clean, no deformation, hidden locking switch, stable and reliable, the outer side of the bed tail board is equipped with an information card slot and anti-collision Angle, with anti-collision function; Symmetrical fast hook seat for quick disassembly.
7, the use of high-grade central control casters, diameter of 150MM, high weight, stable operation, no noise, through the control bar to press and lift the control function, built-in fully enclosed self-lubricating bearing, no need for oil care, prevent foreign bodies involved, independent brake; The wheel surface is made of TPR polymer wear-resistant material, wear-resistant and noiseless.
8, the whole bed using double phosphating + electrostatic powder coating treatment. The bed coating adopts antibacterial coating, anti-bacteria, anti-bacteria, acid and alkali corrosion resistance, Ken color resistance, effectively prolong the service life.
The mattress parameters
1. Product size: It can match the bed size.
2. The bed cover is made of green single-sided Oxford waterproof cloth material, with air hole and zipper setting, and the position of infusion jack is reserved for easy disassembly and washing;
3. The inner layer is made of high-density sponge and machine-pressed coconut brown, with strong air permeability and anti-insect and anti-deformation treatment; The overall thickness of the mattress is 80mm, including 40mm sponge and 40mm coconut brown.
Electric three function hospital bed product parameters
1. The overall size of the product is about: length :2100mm, width :1050mm.
Back tilt Angle 0 ~ 75°, leg tilt Angle: 0 ~ 40° overall lifting adjustment range 430mm- 680mm.
2. Product materials: The upper and lower bed frames are 60×30×1.2mm welded by high-quality cold-rolled carbon steel pipe automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate as a whole. The inner sides and center of the bed plate are welded with 40×20×1.2mm cold-rolled carbon steel pipe to strengthen the structure, improve the strength of the bed plate, solid and durable, balanced force and strong pressure resistance. And with air hole, and anti-slip function.
3, the bed body can carry 200Kg; The bed surface on the back adopts a reinforced structure to strengthen the bearing force of the backboard. The rocker can bear little pressure and save effort when shaking.
4, the motor adopts CE certified low voltage DC silent motor, to ensure the safety of long-term use, low noise, and through 3 years of warranty.
5, four split lifting ABS guardrail, installed on the bed panel, can move with the function of the bed body. Can be up and down, down the process of a pneumatic deceleration device, to prevent in the process of falling too fast to cause harm to personnel.
6, streamlined European version head and tail board using ABS reinforced plastic material, a forming, no gap, easy to clean, no deformation, hidden locking switch, stable and reliable, the outer side of the bed tail board is equipped with an information card slot and anti-collision Angle, with anti-collision function; Symmetrical fast hook seat for quick disassembly.
7, the use of high-grade central control casters, diameter of 150MM, high weight, stable operation, no noise, through the control bar to press and lift the control function, built-in fully enclosed self-lubricating bearing, no need for oil care, prevent foreign bodies involved, independent brake; The wheel surface is made of TPR polymer wear-resistant material, wear-resistant and noiseless.
8, the whole bed using double phosphating + electrostatic powder coating treatment. The bed coating adopts antibacterial coating, anti-bacteria, anti-bacteria, acid and alkali corrosion resistance, Ken color resistance, effectively prolong the service life.
The mattress parameters
1. Product size: It can match the bed size.
2. The bed cover is made of green single-sided Oxford waterproof cloth material, with air hole and zipper setting, and the position of infusion jack is reserved for easy disassembly and washing;
3. The inner layer is made of high-density sponge and machine-pressed coconut brown, with strong air permeability and anti-insect and anti-deformation treatment; The overall thickness of the mattress is 80mm, including 40mm sponge and 40mm coconut brown.
