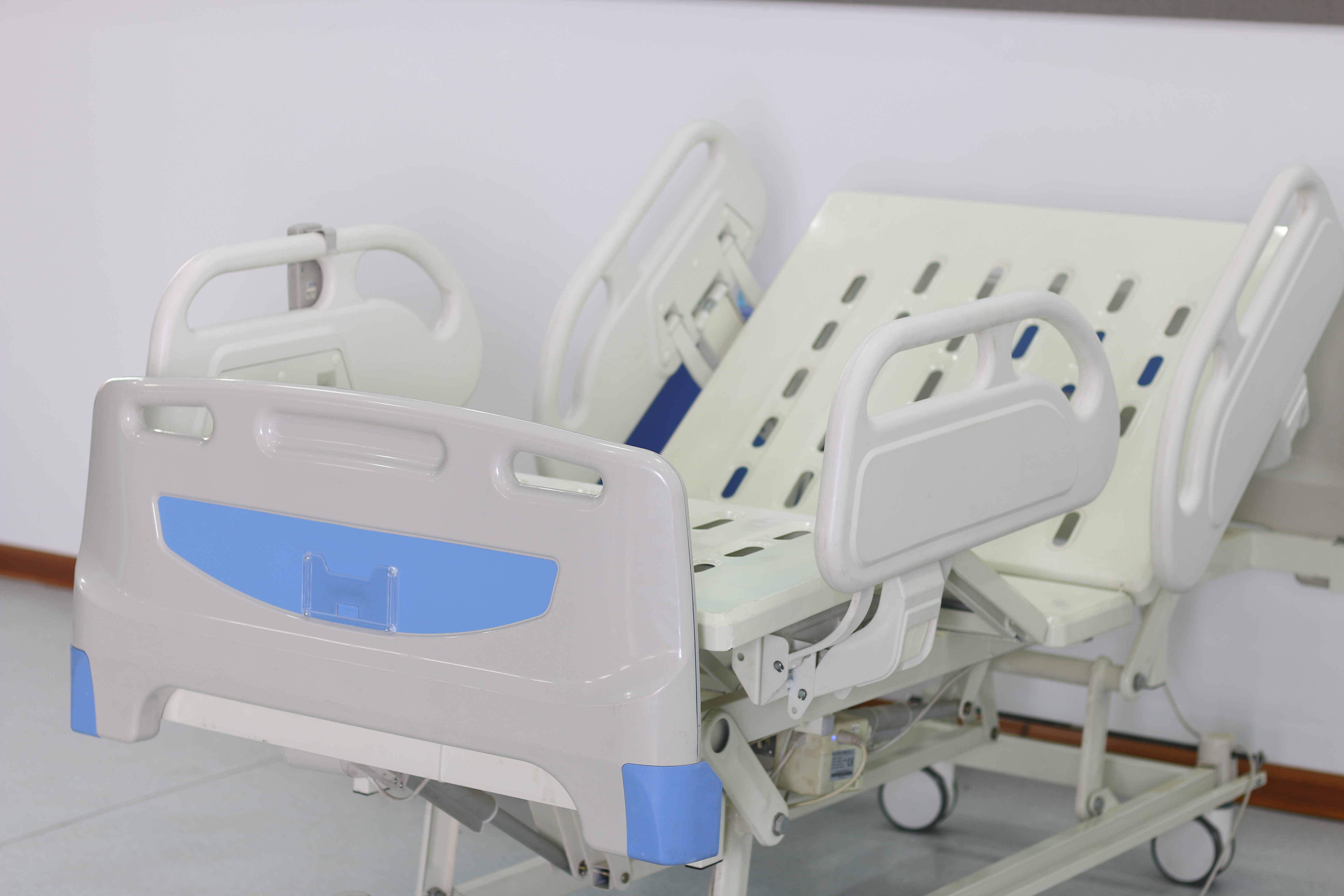

LSYA-D301 Electric Three-function Four-small Guardrail Center Control Wheel
Parameters of electric three-function hospital bed
1, product size: length :2100mm, width :1050mm, height :430-680mm.
Product material: The upper and lower bed frames are 60×30×1.2mm welded by high-quality cold-rolled carbon steel pipe automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate as a whole. The inner sides and center of the bed plate are welded with 40×20×1.2mm cold-rolled carbon steel pipe to strengthen the structure, improve the strength of the bed plate, solid and durable, balanced force and strong pressure resistance. And with air hole, and anti-slip function.
2. Three groups of motor; The motor is always thrust oriented, uniform force, stable power, back function, leg bending function, overall lifting function, one motor is responsible for one function, prolong the service life of the motor.
3, back tilt Angle 0 ~ 75°; Leg tilt Angle: 0 ~ 35° : overall lifting and adjusting range 430mm- 680mm.
4. The bed body can carry 240Kg static and 200Kg dynamic; The back bed surface adopts double support structure. The double support is formed by cold steel plate stamping to strengthen the bearing force of the back plate, and the rocker can bear little pressure.
5. There is a drip rack jack on the diagonal of the bed frame, and the drainage urine bag hook is placed on both sides of the bed frame. When the drip rack is not used, it can be placed at the bottom of both sides of the bed frame.
6. The streamlined European head and tail board is made of ABS reinforced plastic material, a blow molding, no gap, easy to clean, no deformation, hidden locking switch, stable and reliable, the outer side of the bed tail board is equipped with an information card slot and anti-collision Angle, with anti-collision function; Symmetrical fast hook seat for quick disassembly.
7, four split lifting ABS guardrail, installed on the bed panel, can move with the function of the bed body. Can be up and down, down the process of a pneumatic deceleration device, to prevent in the process of falling too fast to cause harm to personnel.
8, the use of 5 inch high-grade casters, built-in fully enclosed self-lubricating bearing, no need for refueling care, prevent foreign bodies involved, central control brake; The wheel surface is made of TPR polymer wear-resistant material, wear-resistant and noiseless.
9, the whole bed using double phosphating + electrostatic powder coating treatment. The bed coating adopts antibacterial coating, anti-bacteria, anti-bacteria, acid and alkali corrosion resistance, Ken color resistance, effectively prolong the service life.
10. The overall thickness of the mattress is 80mm, including 40mm sponge and 40mm coconut brown. It matches the size of the bed. The bed cover is made of green single-sided Oxford waterproof cloth, zipper setting, reserved infusion jack position for easy disassembly and washing; The inner layer is made of high-density sponge and machine-pressed coconut brown, with strong air permeability and anti-insect and anti-deformation treatment.
