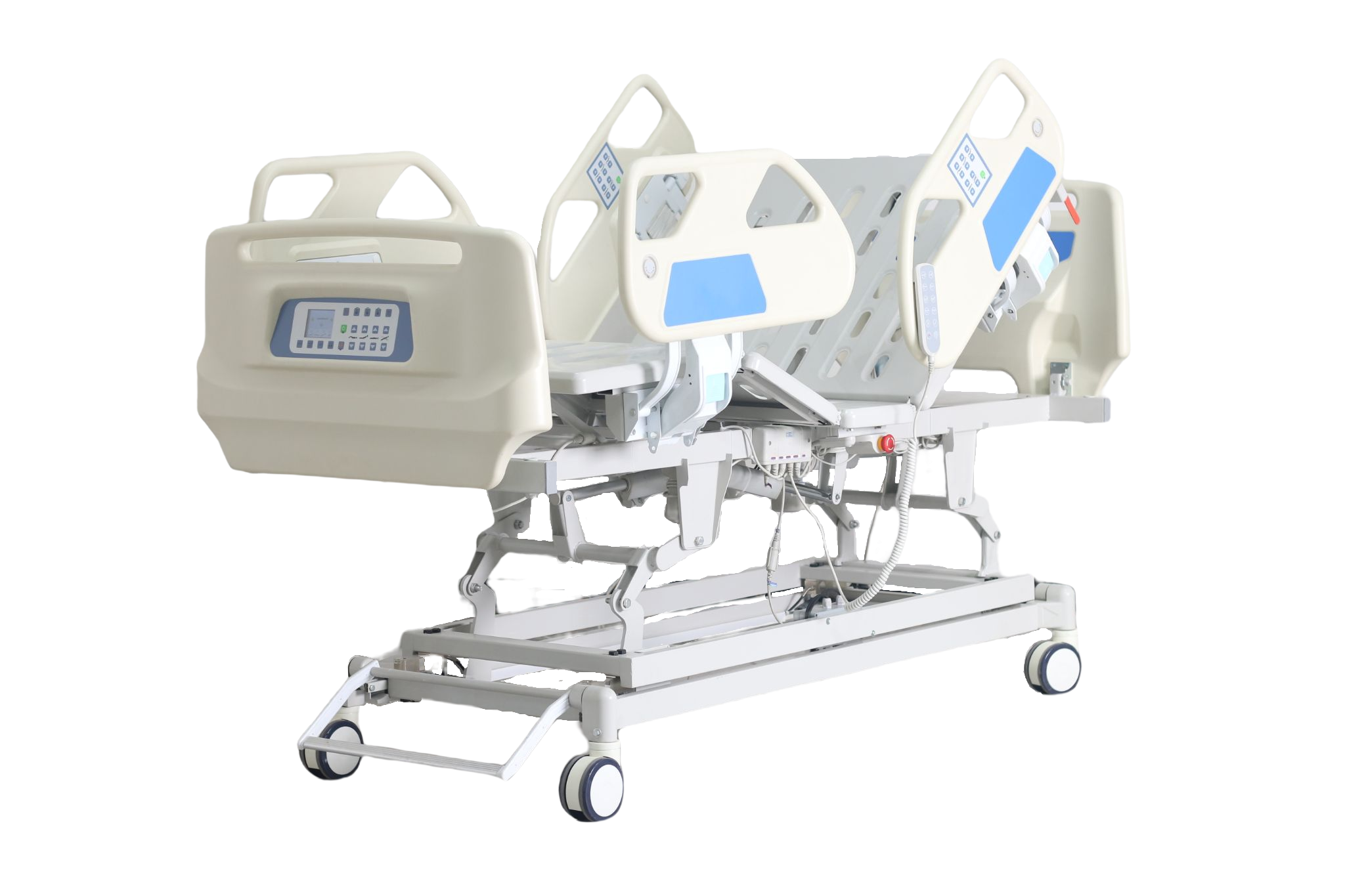

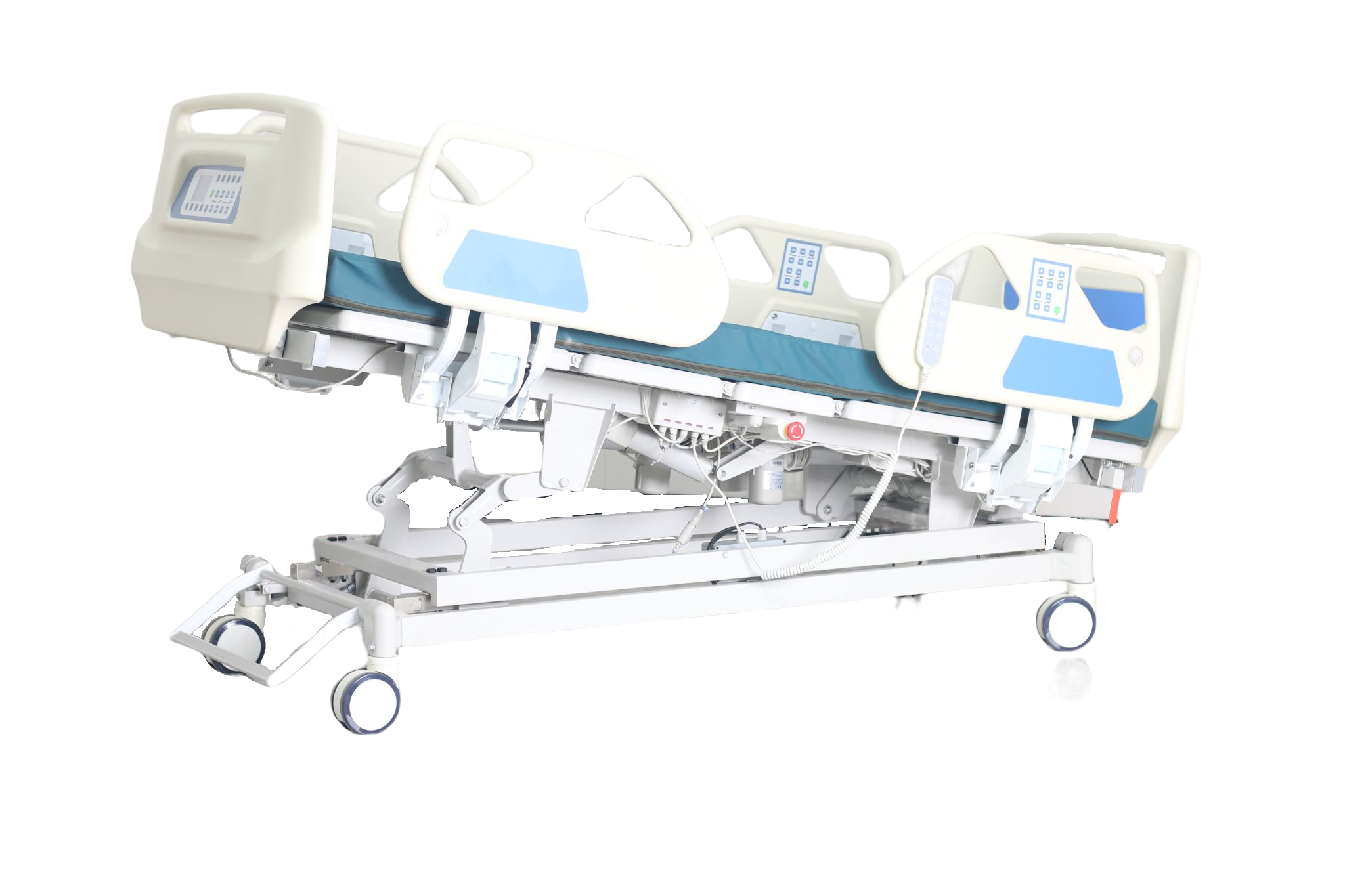

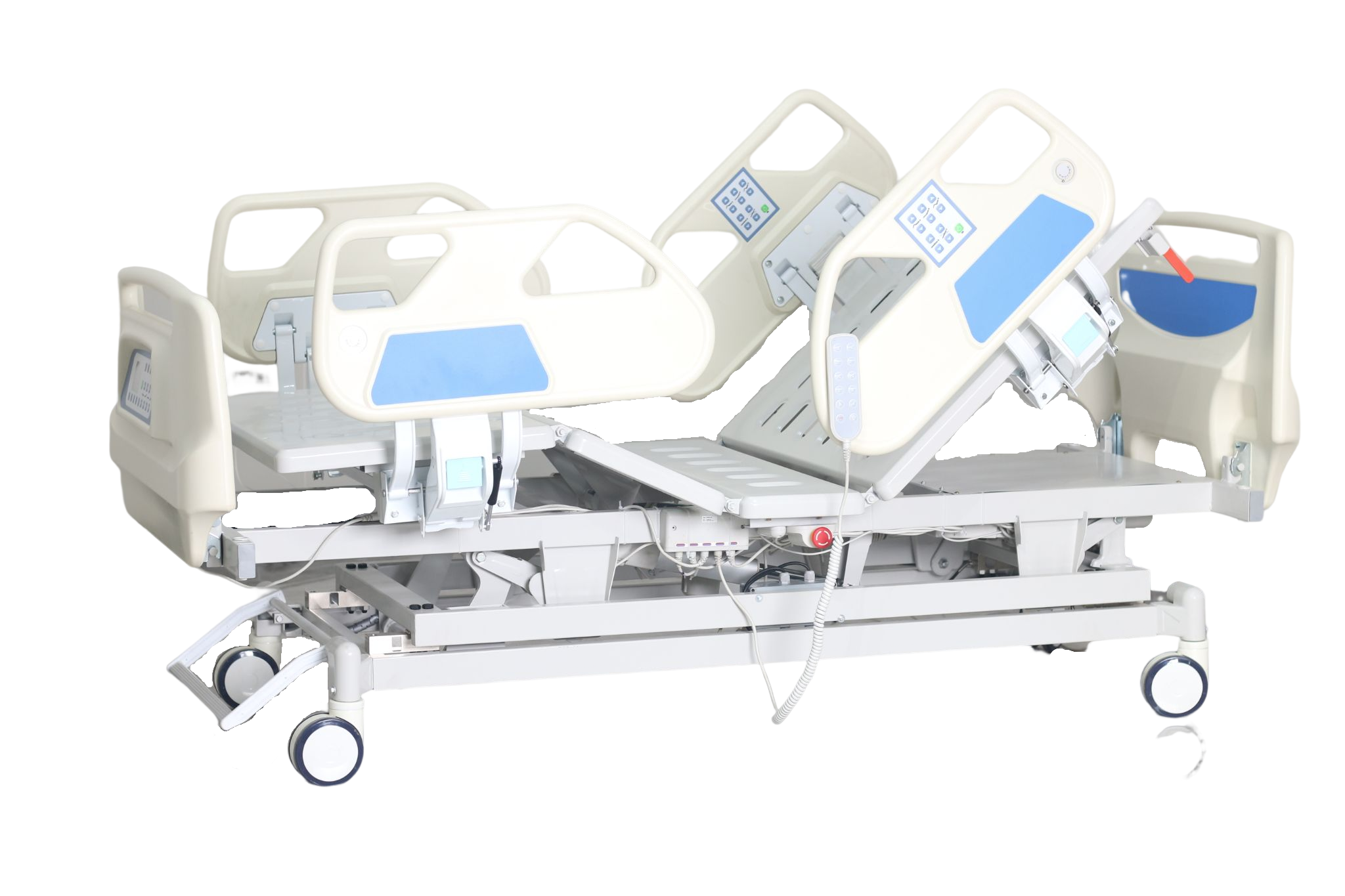

LSYA-D503 Electric Five-function Guardrail Headboard Controller (weighing)
Name: Multifunctional weighing bed
Specifications: Size: L2200×W1080×H480/680mm;
Bed surface plate: L2000×W900mm
Function:
The whole bed can be weighed, the error can be controlled in 1-3‰; Rising distance ≥200mm, midplane adjustment ≥65°, leg adjustment ≥35°, headfoot tilt ≥12°; European four small guardrail, up and down flip structure; Luxury central control caster, with locking, straight, free three-stage central control locking device; With CPR function; The bed plate adopts one body stamping molding, beautiful and durable;
Technical parameters:
Scientific weighing, weighing accuracy of 50-100g, weighing display, regardless of the patient in any body position, just touch a button, the built-in weighing system can measure, precise display of data on the display.
Bed frame: 60*30*3.0mm high-quality cold-drawn rectangular tube, carrying 240KG.
Bed surface: The bed panel is formed by a single stamping of 1.0mm high-quality cold-rolled carbon steel sheet. Improve the strength of the bed plate, balanced force, strong resistance to pressure, and with air holes, and anti-slip function; The welded steel pipe below is reinforced, solid and durable.
The whole bed after surface treatment for many times electrostatic spray, so that it has a more perfect appearance and strong chemical corrosion resistance, spray material environmental protection non-toxic.
The head of bed and end of bed are made of drug-resistant PE resin material, overall blown molding, surface skin grain treatment, easy to clean, arc design. There's a patient information card at the end of the bed.
A new American guardrail made of PE material, the overall blow molding, each guardrail is equipped with a damper device to control the speed and noise, durable, fast and light, the guardrail design meets the IEC safety requirements, beautiful, generous and safe.
Both front and rear guardrails are equipped with Angle displays, which clearly show the raising Angle of the back bed plate and the Angle of the bed body. A 30 degree scale line is set on the guardrail, which is used to determine the Angle of the back rising 30 degrees, which can effectively assist clinical VAP pneumonia.
The original central control brake wheel, bearing high weight, smooth operation, no noise, through the control of the crossbar to achieve the control function of pressing and lifting, built-in fully enclosed self-lubricating bearing, no refueling care, prevent foreign bodies involved; The wheel surface is made of TPR polymer wear-resistant material, wear-resistant and noiseless.
Mattress stopper, which has five spots on both sides of the backplane and at the foot of the bed, prevents the mattress from sliding sideways and improves safety.
Manual CPR-operated spanner on the left side of the bed enables quick treatment in emergency situations and reduces medical errors. 1 drainage hook on both left and right sides.
The motor uses the export original medical motor, which has stable speed control and low noise. With EN60601/UV medical certification, silent, long life, safe and reliable. The guide rod system is made of high carbon steel and high strength aluminum and gold sets, with double pole overload protection lead rod.
Name: Multifunctional weighing bed
Specifications: Size: L2200×W1080×H480/680mm;
Bed surface plate: L2000×W900mm
Function:
The whole bed can be weighed, the error can be controlled in 1-3‰; Rising distance ≥200mm, midplane adjustment ≥65°, leg adjustment ≥35°, headfoot tilt ≥12°; European four small guardrail, up and down flip structure; Luxury central control caster, with locking, straight, free three-stage central control locking device; With CPR function; The bed plate adopts one body stamping molding, beautiful and durable;
Technical parameters:
Scientific weighing, weighing accuracy of 50-100g, weighing display, regardless of the patient in any body position, just touch a button, the built-in weighing system can measure, precise display of data on the display.
Bed frame: 60*30*3.0mm high-quality cold-drawn rectangular tube, carrying 240KG.
Bed surface: The bed panel is formed by a single stamping of 1.0mm high-quality cold-rolled carbon steel sheet. Improve the strength of the bed plate, balanced force, strong resistance to pressure, and with air holes, and anti-slip function; The welded steel pipe below is reinforced, solid and durable.
The whole bed after surface treatment for many times electrostatic spray, so that it has a more perfect appearance and strong chemical corrosion resistance, spray material environmental protection non-toxic.
The head of bed and end of bed are made of drug-resistant PE resin material, overall blown molding, surface skin grain treatment, easy to clean, arc design. There's a patient information card at the end of the bed.
A new American guardrail made of PE material, the overall blow molding, each guardrail is equipped with a damper device to control the speed and noise, durable, fast and light, the guardrail design meets the IEC safety requirements, beautiful, generous and safe.
Both front and rear guardrails are equipped with Angle displays, which clearly show the raising Angle of the back bed plate and the Angle of the bed body. A 30 degree scale line is set on the guardrail, which is used to determine the Angle of the back rising 30 degrees, which can effectively assist clinical VAP pneumonia.
The original central control brake wheel, bearing high weight, smooth operation, no noise, through the control of the crossbar to achieve the control function of pressing and lifting, built-in fully enclosed self-lubricating bearing, no refueling care, prevent foreign bodies involved; The wheel surface is made of TPR polymer wear-resistant material, wear-resistant and noiseless.
Mattress stopper, which has five spots on both sides of the backplane and at the foot of the bed, prevents the mattress from sliding sideways and improves safety.
Manual CPR-operated spanner on the left side of the bed enables quick treatment in emergency situations and reduces medical errors. 1 drainage hook on both left and right sides.
The motor uses the export original medical motor, which has stable speed control and low noise. With EN60601/UV medical certification, silent, long life, safe and reliable. The guide rod system is made of high carbon steel and high strength aluminum and gold sets, with double pole overload protection lead rod.
