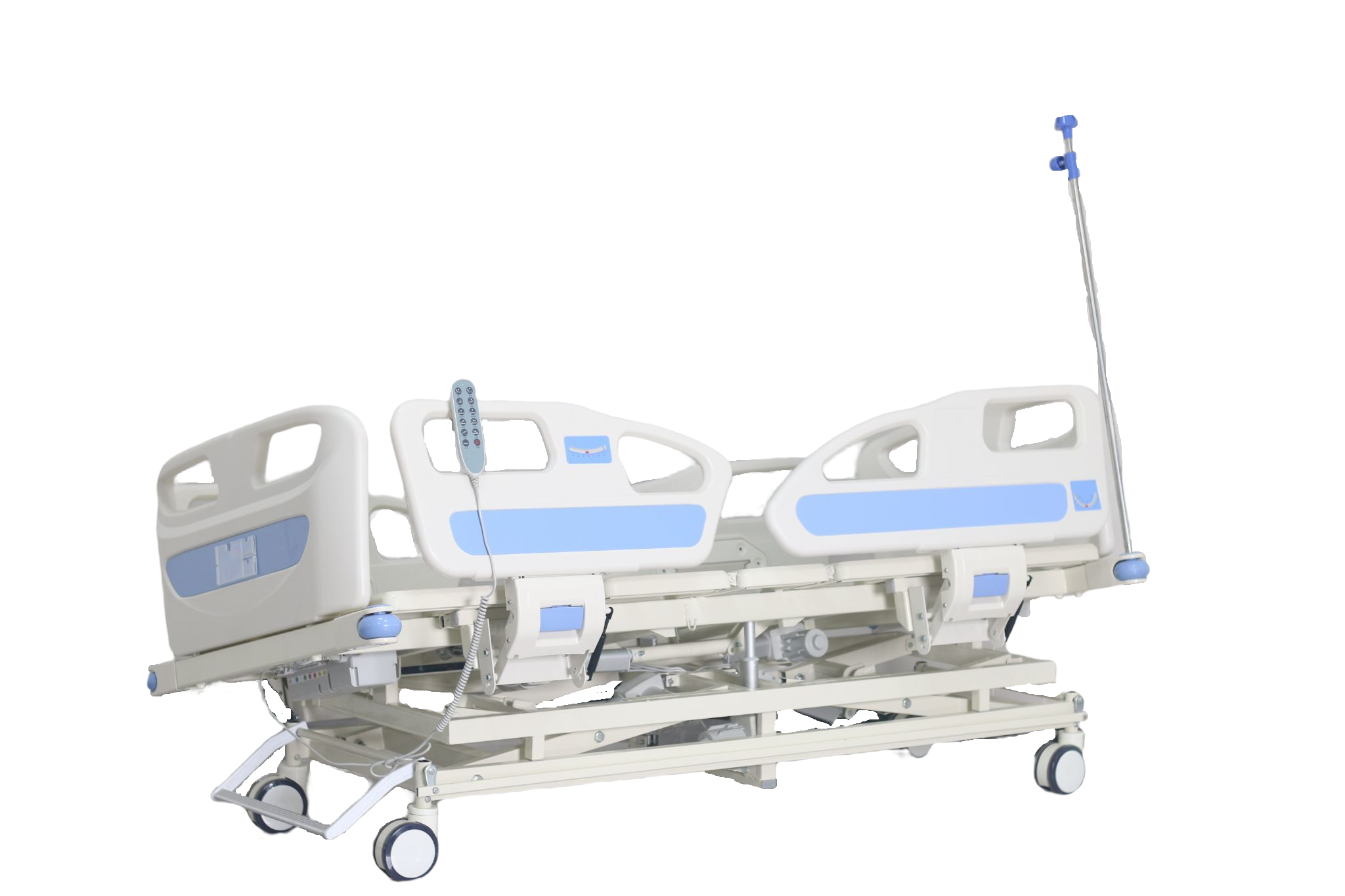

LSYA-D701 Electric Two Function Flashlight One Electric Seven Function ICU Luxury Four Guardrail Light Blue
Parameters of electric seven shaker
1, product size: length :2100mm, width :1060mm, height :500mm.
Product material: The upper and lower bed frames are 60×30×1.2mm welded by high-quality cold-rolled carbon steel pipe automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate as a whole. The inner sides and center of the bed plate are welded with 40×20×1.2mm cold-rolled carbon steel pipe to strengthen the structure, improve the strength of the bed plate, solid and durable, balanced force and strong pressure resistance. And with air hole, and anti-slip function.
2. Six groups of motor; The motor is always thrust oriented, uniform force, stable power, back function, leg bending function, overall lifting function, forward function, backward function, left function, right function. One motor is responsible for one function, extending the life of the motor.
3, back tilt Angle 0 ~ 75°; Leg tilt Angle: 0 ~ 35° : overall lifting adjustment range 440mm- 680mm. Front and back tilt Angle 0-12°. Left and right tilt Angle 0-12°.
4. The bed body can carry 300Kg static and 200Kg dynamic; The back bed surface adopts double support structure. The double support is formed by cold steel plate stamping to strengthen the bearing force of the back plate, and the rocker can bear little pressure.
5. The bed frame is diagonally placed with two drip rack jacks, and there is a drainage urine bag hook on both sides of the bed frame. When the drip rack is not used, it can be placed at the bottom of both sides of the bed frame.
6. The head of the bed and the tail plate of the bed are made of advanced ABS material and blown molding once. The head of the bed is light blue in color. The locking parts are all made of steel parts.
7, the whole bed using double phosphating + electrostatic powder coating treatment. The bed coating adopts antibacterial coating, anti-bacteria, anti-bacteria, acid and alkali corrosion resistance, Ken color resistance, effectively prolong the service life.
8, four split lifting ABS guardrail, installed on the bed panel, can move with the function of the bed body. Can be up and down, down the process of a pneumatic deceleration device, to prevent in the process of falling too fast to cause harm to personnel.
9, central control brake pedal, castor built-in precision bearings, wheel column 28mm, double-sided wheel using polymeric material, wheel surface diameter up to 125mm, dust-proof, silent and wear-resistant
10. Mattress: It can match the bed size. The bed cover is made of green single-sided Oxford waterproof cloth, zipper setting, reserved infusion jack position for easy disassembly and washing; The inner layer is made of high density sponge and machine pressure shaping brown, Hainan coconut brown, strong air permeability, insect control, deformation prevention treatment; The overall thickness of the mattress is 80mm, including 40mm sponge and 40mm coconut brown.
Matching products: ABS lifting table, ABS bedside table, telescopic infusion rack
