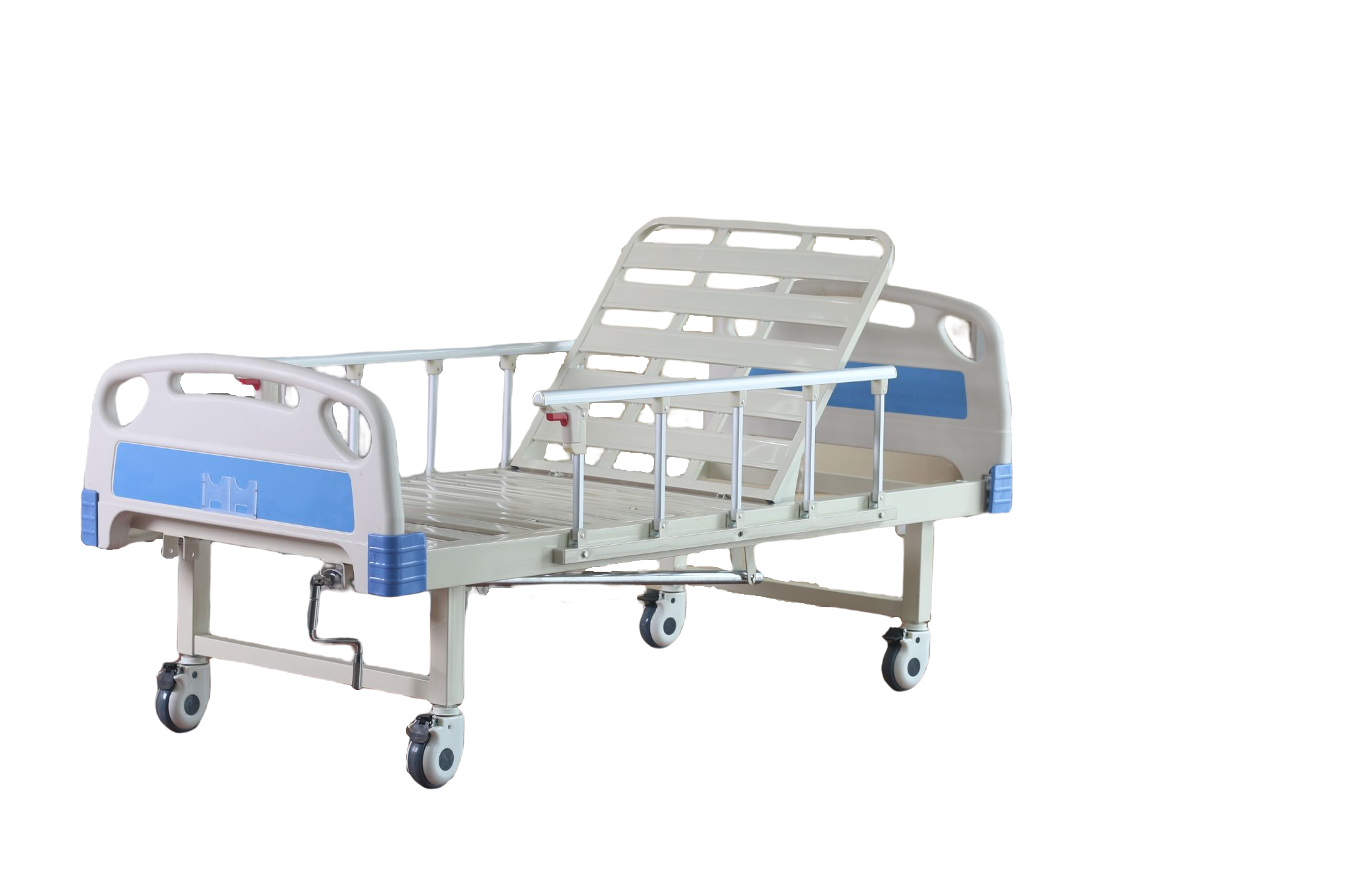

LSYA-S101 Single rocking C-type plate bed with wheels
LSYA-S101 Single rocking C-type plate bed with wheels
1. Parameters of single shaking hospital bed (with wheels)
1. Product dimensions: length: 2050mm, width: 960mm, height: 500mm.
2. Product materials:
1) The bed top adopts a 40×80 square tube with a thickness of 1mm. The legs of the bed are high-quality cold-rolled carbon steel pipes 40×40×1mm. The bed connection parts are all stamped and formed by thick-walled pipes with a thickness of 2.75mm or more or 3mm cold plates.
2) The bed plate is made of ≥1.0mm cold-rolled strip steel plate molding. It improves the strength of the bed plate, the force is balanced, the pressure resistance is strong, and it has ventilation holes and anti-skid function; the welded steel pipe below is reinforced, which is solid and durable. )
3) Welding process; the bed frame and bed surface are fully welded with imported machine welding arms, the welding is firm, the welding place is smooth and durable
3. Function:
1. Back lift angle: 0-75 degrees; can be adjusted arbitrarily
2. Static bearing weight: ≥250kg, adjustable bearing weight: ≥200kg; the back bed surface adopts double support structure, which is firm and firm. The double support is stamped and formed from 3.0mm cold-rolled steel plate, which strengthens the bearing capacity of the back bed plate, and the rocker is stressed. Smaller, easier, more flexible and safer to shake.
3. Rocking hand: a set of rocker; stainless steel rocker handle, hidden design, lengthened rocker arm, easy and labor-saving operation, flexible and reliable; comfortable feel, high strength, light weight, strong and durable; folding structure, hidden design, paste There is a position lift mark, so that the operation is clear at a glance;
4. Rocker: 45# steel cross joint, stainless steel telescopic rod, 45# die steel screw, high-quality φ32*2.0mm galvanized steel support tube, ABS dust jacket, easy to shake, stable and safe, anti-
5. Dust-proof and rust-proof, beautiful appearance; all-steel transmission clutch system, no plastic structure, wear-resistant, pressure-resistant and long-life; the screw adopts a two-way in-position limitless protection device, which has in-position and overload protection functions, and enhances the rocker service life and safety performance;
6. The high-quality cold-rolled sheet is bent into a strip-type spraying bed panel, which is firm and has good air permeability;
7. Two-fold mattress: size: 1.92m×0.9m×0.6m, material: sponge plus brown inner pad, thickness 60mm, 40mm brown pad, 20mm high-density sponge pad, the thickness ratio is produced according to the requirements of the hospital, bed There are ventilation holes on both sides of the pad to prevent bedsores. The outer skin is made of medical waterproof Oxford cloth, which can be flexibly disassembled, which is convenient for clinical care and hygienic cleaning.
8. The total length of the side guardrail is ≥1200mm, D-type aluminum alloy handrail, surface hardening treatment, five stainless steel guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is ≥3.0mm, and the switch is carefully designed to prevent pinching to ensure long-term safety. It is equipped with anti-loose fasteners, wear-resistant, non-deformable, can be shrunk flat, slightly higher than the bed surface when shrunk, which can prevent the mattress from shifting.
9. The head and tail of the bed are made of ABS reinforced plastic material, injection-molded, with a thickness of ≥3mm.
10. Equipped with 4 high-strength, high-wear, mute universal casters, anti-winding design, diagonal braking, safe and reliable braking, convenient and flexible.

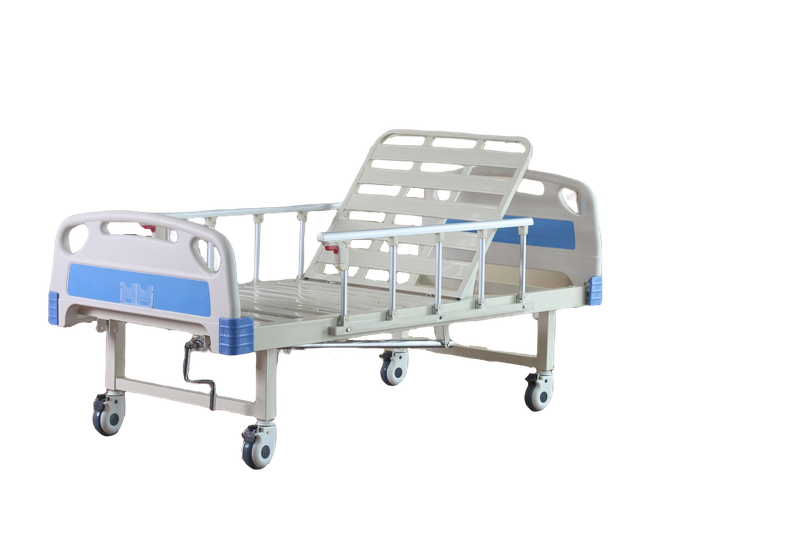

LSYA-S101 Single rocking C-type plate bed with wheels
