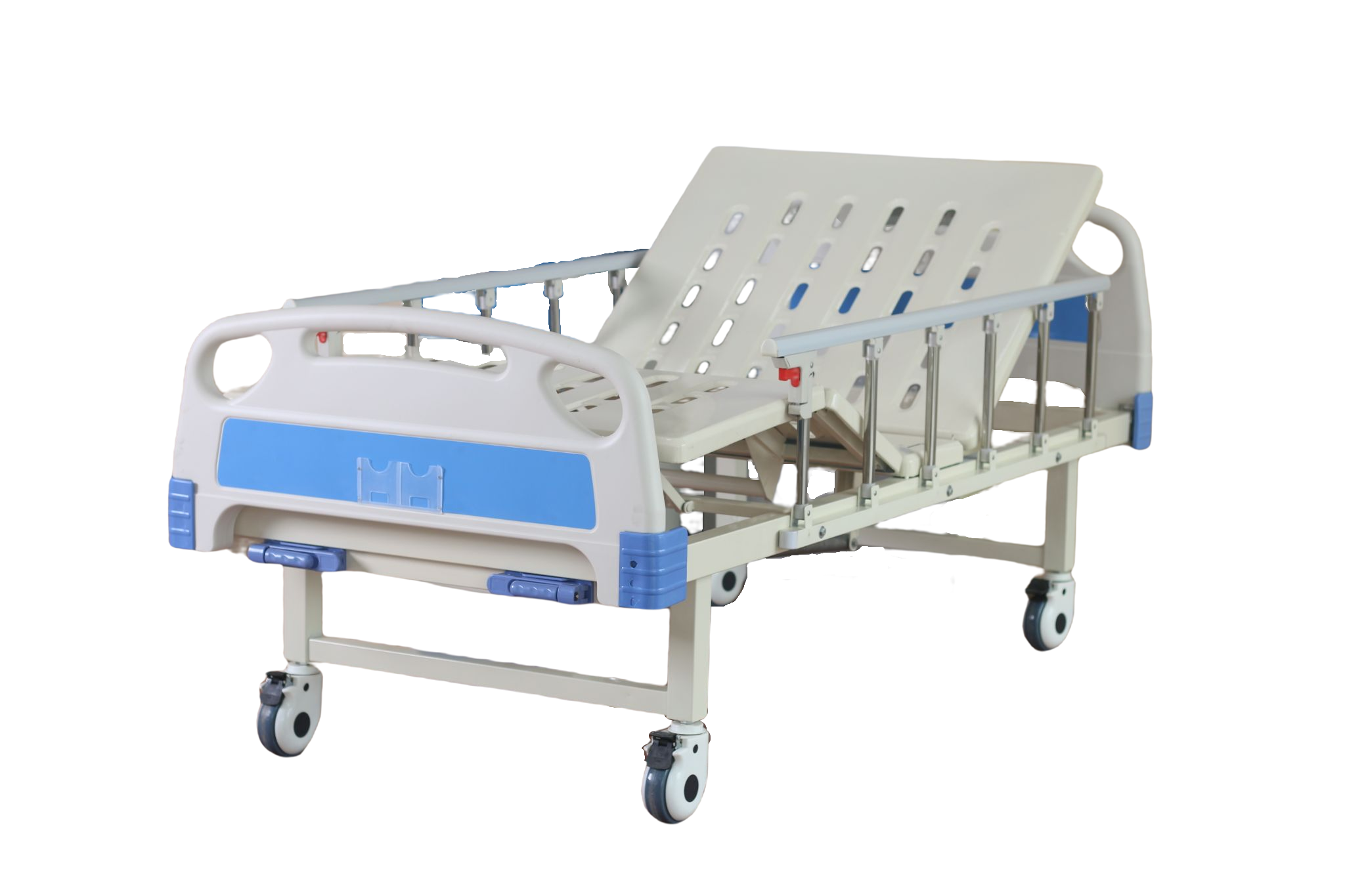

LSYA-S204 Double-shake whole plate punching bed surface ABS bed head pulley
First, the bed parameters:
1. Specifications and dimensions: length: 2050mm, width: 960mm, height: 500mm.
2. Product material:
(1) The bed frame is made of high-quality carbon steel rectangular steel pipe with length 40mm × width 60mm × thickness 1.2mm:
(2) The bed plate is made of 1.2mm high-quality cold-rolled carbon steel plate as a whole, and the inner side and center of the bed plate are welded with 40 × 20 × 1.2mm cold-rolled carbon steel pipe to strengthen the structure to improve the strength of the bed plate. Strong, with ventilation holes, and anti-slip function.
(3) The foot of the bed is made of high-quality carbon steel rectangular steel pipe with a length of 40mm × width of 40mm × thickness of 1.2mm:
3. ABS reinforced plastic crank handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel, which is firm and flexible, without noise, and easy to operate; the rocker can be folded and retracted; the patient's back and legs can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
4. The headboard and footboard of the bed are made of high-grade ABS material by blow molding at one time. The color of the headboard is light blue. The locking parts are all made of steel. The symmetrical quick socket can be quickly disassembled. The head plate is designed for collision-proof corners.
5. The whole bed is electrostatically sprayed after multiple surface treatments, so that it has a more perfect appearance, strong chemical resistance and electrical insulation, and the sprayed material is environmentally friendly and non-toxic.
6. There are infusion jacks at the head and foot of the bed, and drainage hooks on both sides of the bed frame.
7. Back tilt: 0°-75°, leg tilt: 0°-35° can be adjusted arbitrarily.
8. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts double support structure, and the double support is stamped and formed from cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
9. Adopt 5-inch high-grade casters, built-in fully enclosed self-lubricating bearings, no need for oil care, prevent foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
2. Mattress parameters
1. Product size: can match the size of the bed.
2. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash;
3. The inner layer is made of high-density sponge and machine-pressed positive brown Hainan coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation; the overall thickness of the mattress is 60mm, of which the sponge is 20mm and the coconut palm is 40mm.
Product parameters of integrated bed frame central control wheel double shaking hospital bed
1. The outer diameter of the product is about: length: 2150mm, width: 1050mm, height: 500mm.
The inner diameter is about: length: 1900mm, width: 900mm, height: 500mm.
Back inclination angle 0 ~ 60°, leg inclination angle: 0 ~ 35° can be adjusted arbitrarily
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 × 20 × 1.2mm cold-rolled carbon steel pipe reinforced structure to improve the strength of the bed board, solid and durable, balanced force, strong pressure resistance, with ventilation holes, and anti-slip function, there is a shoe tray under the bed, which is convenient for patients to place items.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed from cold steel plates, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Two sets of rockers; stainless steel rocker handles make the operation clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. ABS large guardrail: It is installed on the bed panel and can be lifted up and down. There is a pneumatic deceleration device during the descending process to prevent the personnel from being injured by excessive speed during the descending process.
6. The headboard and footboard are composed of stainless steel tube, ABS injection molding material and composite board. The overall arc design, with stainless steel built-in structure at the head and tail of the bed, outsourced with easy-to-clean polished ABS engineering plastics. The middle part is decorated with high-grade solid wood particle board. There is an acrylic transparent patient information card slot on the outside of the tail plate. The headboard and footboard of the bed are made of column-type hooks, and are equipped with movable anti-drop hooks, which are easy to clean and not deformed. Soft anti-collision corners are installed on the four corners of the bed, and anti-collision wheels are arranged on the anti-collision corners, which is beneficial to protect the bed body and public facilities.
7. Center control wheel: 5-inch luxury caster, center control braking function, stable braking effect, high precision of each dimension, and high strength of the caster. All-round release (swivel casters); all-round locking function (rotation stop, rotation stop). High bearing capacity, stable operation, no noise, control function is realized by pressing the control lever, built-in fully enclosed self-lubricating bearing, no need for oil and care, preventing foreign matter from being involved; the wheel surface is made of TPR polymer wear-resistant material, wear-resistant, No noise.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
9. Reversible dining table: PP material, with good toughness, both ends of the dining table have gripping slots, which have an auxiliary role in getting up. Equipped with a locking device, it will not tilt when used upright. When you don't need to put it away, you can place the end of the bed, which is convenient and concise. There is a pneumatic deceleration device during the descending process to prevent the personnel from being injured by excessive speed during the descending process.
10. Mattress parameters
(1) Product size: can match the size of the bed.
(2) The bed cover is made of green single-sided Oxford tarpaulin material, with ventilation holes, zipper settings, and the reserved infusion jack is easy to remove and wash;
(3) The inner layer is made of high-density sponge and machine-pressed coconut palm, which has strong air permeability, and has been treated to prevent insects and deformation. The overall thickness of the mattress is 80mm, of which the sponge is 40mm and the coconut palm is 40mm.
First, the bed parameters:
1. Specifications and dimensions: length: 2050mm, width: 960mm, height: 500mm.
Back tilt: 0°-75° Leg tilt angle: 0～35° can be adjusted arbitrarily,
2. Product material:
(1) The bed frame is made of high-quality carbon steel rectangular steel pipe with length 40mm × width 80mm × thickness 1.2mm;
(2) The bed panel is welded and formed by high-quality steel pipes with a length of 40mm × width of 20mm × thickness of 1.2mm, which is strong and practical;
(3) The feet of the bed are made of high-quality carbon steel rectangular steel pipes with a length of 40mm × width of 40mm × thickness of 1.2mm;
3. The screw of the hand shaker is made of 45# steel, the wall thickness of the screw is 3.0mm, the appearance of the lifting screw is smooth and durable, the rocker adopts the universal joint structure, and the two-way limit protection device is used, which is safe and reliable, easy to use and no noise ; And there are protective devices to prevent dust accumulation; the crank handle can be folded and folded.
4. The headboard and footboard of the bed are made of high-grade ABS material by blow molding at one time. The color of the headboard is light blue. The locking parts are all made of steel. The symmetrical quick socket can be quickly disassembled. The head plate is designed for collision-proof corners.
5. The total length of the side guardrail is 1200mm, D-type aluminum alloy handrail, surface hardening treatment, five aluminum alloy guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 3.0mm, the switch is carefully designed to ensure the safety of long-term use, equipped with Anti-loosening fasteners, wear-resistant, non-deformable, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6. The bed body can carry 240Kg statically and 200Kg dynamically; the bottom of the bed all adopts double support structure, which strengthens the bearing capacity of the backboard, the rocker bears less pressure, and the operation is labor-saving when shaking.
7. 5-inch high-grade casters are used, with built-in fully enclosed self-lubricating bearings, no need for refueling and nursing, preventing foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
8. The dining table board is made of pp material, and the two ends are molded into a concave shelf with pp (anti-displacement), which is easy to clean and wear-resistant. The dining table board can be placed at the end of the bed, which is convenient for patients to use, safe and reliable.
9. The whole bed is electrostatically sprayed after multiple surface treatments, so that it has a more perfect appearance and strong chemical corrosion resistance, and the sprayed material is environmentally friendly and non-toxic. First, the bed parameters:
1. Specifications and dimensions: length: 2050mm, width: 960mm, height: 500mm.
Back tilt: 0°-75° Leg tilt angle: 0～35° can be adjusted arbitrarily,
2. Product material:
(1) The bed frame is made of high-quality carbon steel rectangular steel pipe with length 40mm × width 80mm × thickness 1.2mm;
(2) The bed panel is welded and formed by high-quality steel pipes with a length of 40mm × width of 20mm × thickness of 1.2mm, which is strong and practical;
(3) The feet of the bed are made of high-quality carbon steel rectangular steel pipes with a length of 40mm × width of 40mm × thickness of 1.2mm;
3. The screw of the hand shaker is made of 45# steel, the wall thickness of the screw is 3.0mm, the appearance of the lifting screw is smooth and durable, the rocker adopts the universal joint structure, and the two-way limit protection device is used, which is safe and reliable, easy to use and no noise ; And there are protective devices to prevent dust accumulation; the crank handle can be folded and folded.
4. The headboard and footboard of the bed are made of high-grade ABS material by blow molding at one time. The color of the headboard is light blue. The locking parts are all made of steel. The symmetrical quick socket can be quickly disassembled. The head plate is designed for collision-proof corners.
5. The total length of the side guardrail is 1200mm, D-type aluminum alloy handrail, surface hardening treatment, five aluminum alloy guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 3.0mm, the switch is carefully designed to ensure the safety of long-term use, equipped with Anti-loosening fasteners, wear-resistant, non-deformable, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6. The bed body can carry 240Kg statically and 200Kg dynamically; the bottom of the bed all adopts double support structure, which strengthens the bearing capacity of the backboard, the rocker bears less pressure, and the operation is labor-saving when shaking.
7. 5-inch high-grade casters are used, with built-in fully enclosed self-lubricating bearings, no need for refueling and nursing, preventing foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
8. The dining table board is made of pp material, and the two ends are molded into a concave shelf with pp (anti-displacement), which is easy to clean and wear-resistant. The dining table board can be placed at the end of the bed, which is convenient for patients to use, safe and reliable.
9. The whole bed is electrostatically sprayed after multiple surface treatments, so that it has a more perfect appearance and strong chemical corrosion resistance, and the sprayed material is environmentally friendly and non-toxic.
First, the bed parameters:
1. Specifications and dimensions: length: 2050mm, width: 960mm, height: 500mm.
2. Product material:
(1) The bed frame is made of high-quality carbon steel rectangular steel pipe with length 40mm × width 60mm × thickness 1.2mm:
(2) The bed plate is made of 1.2mm high-quality cold-rolled carbon steel plate as a whole, and the inner side and center of the bed plate are welded with 40 × 20 × 1.2mm cold-rolled carbon steel pipe to strengthen the structure to improve the strength of the bed plate. Strong, with ventilation holes, and anti-slip function.
(3) The foot of the bed is made of high-quality carbon steel rectangular steel pipe with a length of 40mm × width of 40mm × thickness of 1.2mm:
3. ABS reinforced plastic crank handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel, which is firm and flexible, without noise, and easy to operate; the rocker can be folded and retracted; the patient's back and legs can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
4. The headboard and footboard of the bed are made of high-grade ABS material by blow molding at one time. The color of the headboard is light blue. The locking parts are all made of steel. The symmetrical quick socket can be quickly disassembled. The head plate is designed for collision-proof corners.
5. The whole bed is electrostatically sprayed after multiple surface treatments, so that it has a more perfect appearance, strong chemical resistance and electrical insulation, and the sprayed material is environmentally friendly and non-toxic.
6. There are infusion jacks at the head and foot of the bed, and drainage hooks on both sides of the bed frame.
7. Back tilt: 0°-75°, leg tilt: 0°-35° can be adjusted arbitrarily.
8. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts double support structure, and the double support is stamped and formed from cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
9. Adopt 5-inch high-grade casters, built-in fully enclosed self-lubricating bearings, no need for oil care, prevent foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
2. Mattress parameters
1. Product size: can match the size of the bed.
2. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash;
3. The inner layer is made of high-density sponge and machine-pressed positive brown Hainan coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation; the overall thickness of the mattress is 60mm, of which the sponge is 20mm and the coconut palm is 40mm.
Product parameters of integrated bed frame central control wheel double shaking hospital bed
1. The outer diameter of the product is about: length: 2150mm, width: 1050mm, height: 500mm.
The inner diameter is about: length: 1900mm, width: 900mm, height: 500mm.
Back inclination angle 0 ~ 60°, leg inclination angle: 0 ~ 35° can be adjusted arbitrarily
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 × 20 × 1.2mm cold-rolled carbon steel pipe reinforced structure to improve the strength of the bed board, solid and durable, balanced force, strong pressure resistance, with ventilation holes, and anti-slip function, there is a shoe tray under the bed, which is convenient for patients to place items.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed from cold steel plates, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Two sets of rockers; stainless steel rocker handles make the operation clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. ABS large guardrail: It is installed on the bed panel and can be lifted up and down. There is a pneumatic deceleration device during the descending process to prevent the personnel from being injured by excessive speed during the descending process.
6. The headboard and footboard are composed of stainless steel tube, ABS injection molding material and composite board. The overall arc design, with stainless steel built-in structure at the head and tail of the bed, outsourced with easy-to-clean polished ABS engineering plastics. The middle part is decorated with high-grade solid wood particle board. There is an acrylic transparent patient information card slot on the outside of the tail plate. The headboard and footboard of the bed are made of column-type hooks, and are equipped with movable anti-drop hooks, which are easy to clean and not deformed. Soft anti-collision corners are installed on the four corners of the bed, and anti-collision wheels are arranged on the anti-collision corners, which is beneficial to protect the bed body and public facilities.
7. Center control wheel: 5-inch luxury caster, center control braking function, stable braking effect, high precision of each dimension, and high strength of the caster. All-round release (swivel casters); all-round locking function (rotation stop, rotation stop). High bearing capacity, stable operation, no noise, control function is realized by pressing the control lever, built-in fully enclosed self-lubricating bearing, no need for oil and care, preventing foreign matter from being involved; the wheel surface is made of TPR polymer wear-resistant material, wear-resistant, No noise.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
9. Reversible dining table: PP material, with good toughness, both ends of the dining table have gripping slots, which have an auxiliary role in getting up. Equipped with a locking device, it will not tilt when used upright. When you don't need to put it away, you can place the end of the bed, which is convenient and concise. There is a pneumatic deceleration device during the descending process to prevent the personnel from being injured by excessive speed during the descending process.
10. Mattress parameters
(1) Product size: can match the size of the bed.
(2) The bed cover is made of green single-sided Oxford tarpaulin material, with ventilation holes, zipper settings, and the reserved infusion jack is easy to remove and wash;
(3) The inner layer is made of high-density sponge and machine-pressed coconut palm, which has strong air permeability, and has been treated to prevent insects and deformation. The overall thickness of the mattress is 80mm, of which the sponge is 40mm and the coconut palm is 40mm.
First, the bed parameters:
1. Specifications and dimensions: length: 2050mm, width: 960mm, height: 500mm.
Back tilt: 0°-75° Leg tilt angle: 0～35° can be adjusted arbitrarily,
2. Product material:
(1) The bed frame is made of high-quality carbon steel rectangular steel pipe with length 40mm × width 80mm × thickness 1.2mm;
(2) The bed panel is welded and formed by high-quality steel pipes with a length of 40mm × width of 20mm × thickness of 1.2mm, which is strong and practical;
(3) The feet of the bed are made of high-quality carbon steel rectangular steel pipes with a length of 40mm × width of 40mm × thickness of 1.2mm;
3. The screw of the hand shaker is made of 45# steel, the wall thickness of the screw is 3.0mm, the appearance of the lifting screw is smooth and durable, the rocker adopts the universal joint structure, and the two-way limit protection device is used, which is safe and reliable, easy to use and no noise ; And there are protective devices to prevent dust accumulation; the crank handle can be folded and folded.
4. The headboard and footboard of the bed are made of high-grade ABS material by blow molding at one time. The color of the headboard is light blue. The locking parts are all made of steel. The symmetrical quick socket can be quickly disassembled. The head plate is designed for collision-proof corners.
5. The total length of the side guardrail is 1200mm, D-type aluminum alloy handrail, surface hardening treatment, five aluminum alloy guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 3.0mm, the switch is carefully designed to ensure the safety of long-term use, equipped with Anti-loosening fasteners, wear-resistant, non-deformable, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6. The bed body can carry 240Kg statically and 200Kg dynamically; the bottom of the bed all adopts double support structure, which strengthens the bearing capacity of the backboard, the rocker bears less pressure, and the operation is labor-saving when shaking.
7. 5-inch high-grade casters are used, with built-in fully enclosed self-lubricating bearings, no need for refueling and nursing, preventing foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
8. The dining table board is made of pp material, and the two ends are molded into a concave shelf with pp (anti-displacement), which is easy to clean and wear-resistant. The dining table board can be placed at the end of the bed, which is convenient for patients to use, safe and reliable.
9. The whole bed is electrostatically sprayed after multiple surface treatments, so that it has a more perfect appearance and strong chemical corrosion resistance, and the sprayed material is environmentally friendly and non-toxic. First, the bed parameters:
1. Specifications and dimensions: length: 2050mm, width: 960mm, height: 500mm.
Back tilt: 0°-75° Leg tilt angle: 0～35° can be adjusted arbitrarily,
2. Product material:
(1) The bed frame is made of high-quality carbon steel rectangular steel pipe with length 40mm × width 80mm × thickness 1.2mm;
(2) The bed panel is welded and formed by high-quality steel pipes with a length of 40mm × width of 20mm × thickness of 1.2mm, which is strong and practical;
(3) The feet of the bed are made of high-quality carbon steel rectangular steel pipes with a length of 40mm × width of 40mm × thickness of 1.2mm;
3. The screw of the hand shaker is made of 45# steel, the wall thickness of the screw is 3.0mm, the appearance of the lifting screw is smooth and durable, the rocker adopts the universal joint structure, and the two-way limit protection device is used, which is safe and reliable, easy to use and no noise ; And there are protective devices to prevent dust accumulation; the crank handle can be folded and folded.
4. The headboard and footboard of the bed are made of high-grade ABS material by blow molding at one time. The color of the headboard is light blue. The locking parts are all made of steel. The symmetrical quick socket can be quickly disassembled. The head plate is designed for collision-proof corners.
5. The total length of the side guardrail is 1200mm, D-type aluminum alloy handrail, surface hardening treatment, five aluminum alloy guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 3.0mm, the switch is carefully designed to ensure the safety of long-term use, equipped with Anti-loosening fasteners, wear-resistant, non-deformable, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6. The bed body can carry 240Kg statically and 200Kg dynamically; the bottom of the bed all adopts double support structure, which strengthens the bearing capacity of the backboard, the rocker bears less pressure, and the operation is labor-saving when shaking.
7. 5-inch high-grade casters are used, with built-in fully enclosed self-lubricating bearings, no need for refueling and nursing, preventing foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
8. The dining table board is made of pp material, and the two ends are molded into a concave shelf with pp (anti-displacement), which is easy to clean and wear-resistant. The dining table board can be placed at the end of the bed, which is convenient for patients to use, safe and reliable.
9. The whole bed is electrostatically sprayed after multiple surface treatments, so that it has a more perfect appearance and strong chemical corrosion resistance, and the sprayed material is environmentally friendly and non-toxic.
