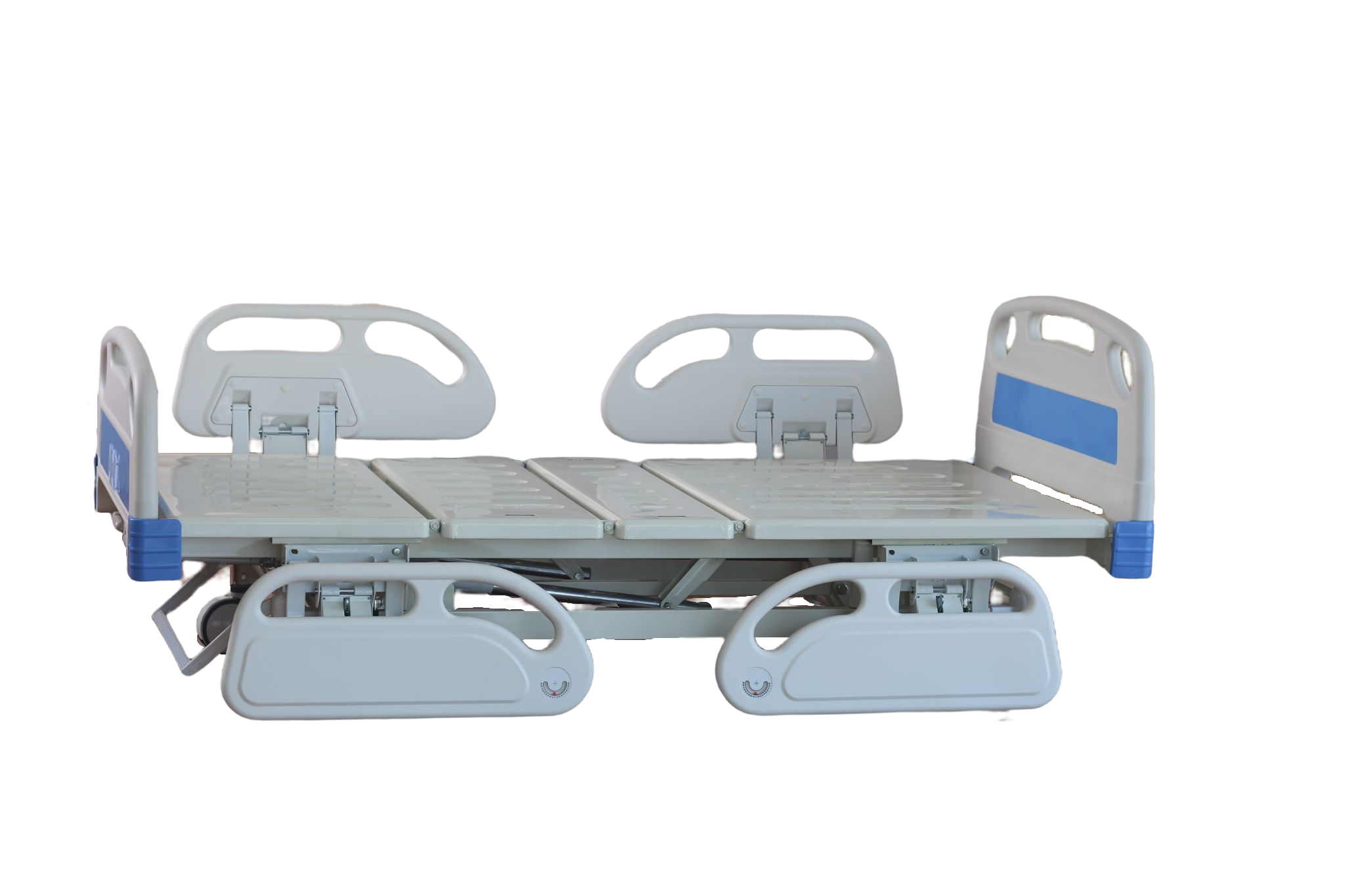

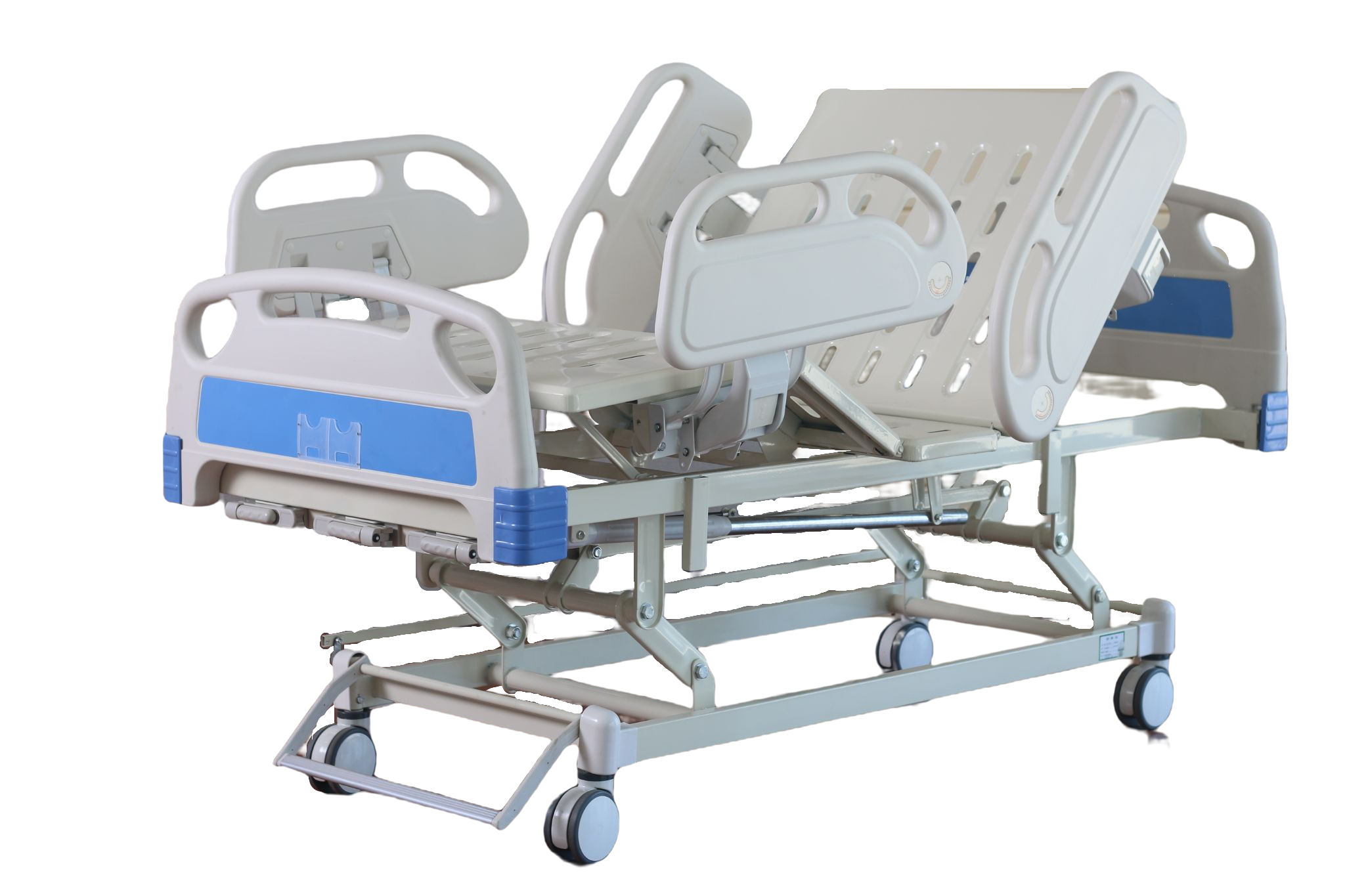

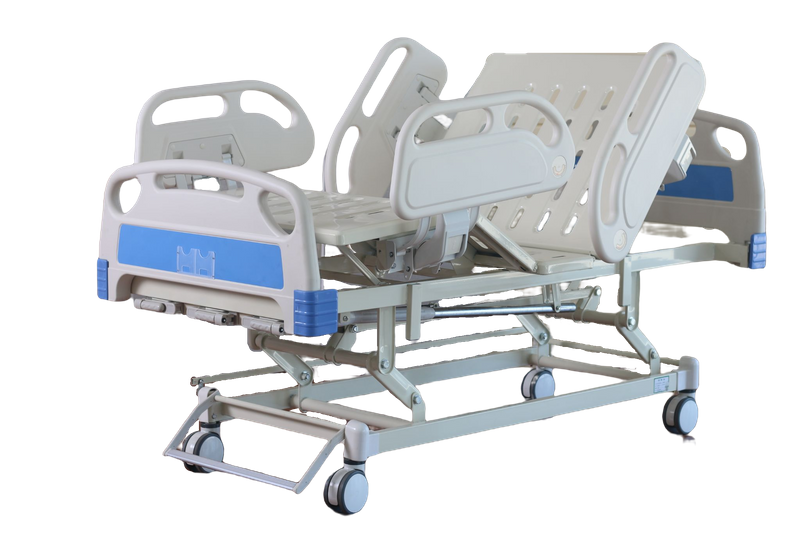

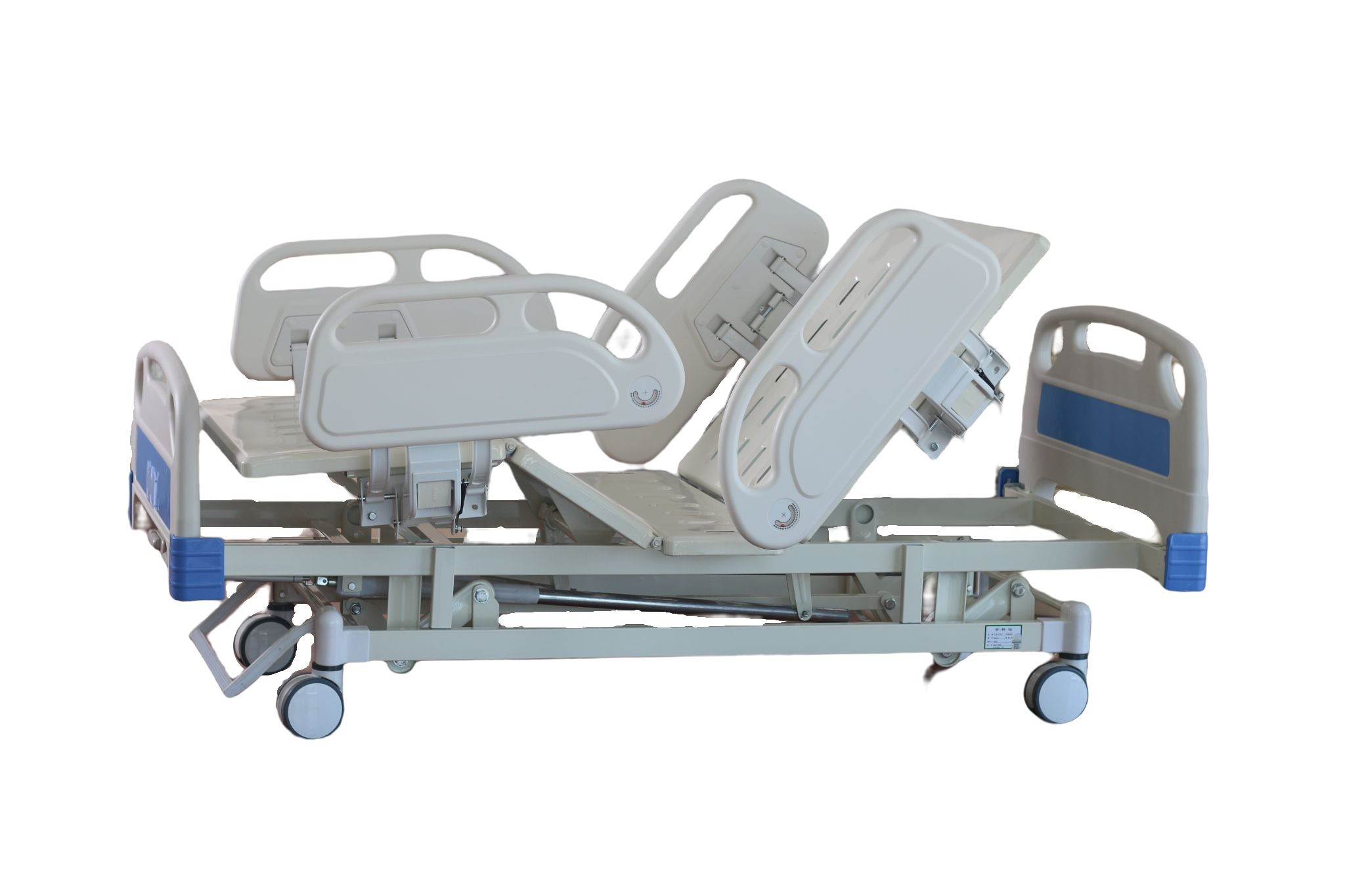

LSYA-S303 Three-shaking Central Control Wheel Common Bedside Four Small Guardrails
Product parameters of PP guardrail with central control wheel
1. Product dimensions: length: 2100mm, width: 1050mm.
The back inclination angle is 0~75°, and the leg inclination angle: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed from cold steel plates, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. The four-piece split-type lifting ABS guardrail is installed on the bed panel and can act simultaneously with the function of the bed body. It can go up and down, and there is a pneumatic deceleration device during the descending process to prevent injury to personnel due to excessive speed during the descending process.
6. The streamlined European version of the headboard and tailboard is made of ABS reinforced plastic material. It is formed at one time, without gaps, easy to clean, and does not deform. It has a hidden lock switch, which is stable and reliable. Anti-collision function; symmetrical quick hook seat, which can be quickly disassembled.
7. It adopts high-grade central control casters with a diameter of 150MM, high bearing capacity, stable operation and no noise. The control function is realized by pressing and lifting the control bar. The built-in fully enclosed self-lubricating bearing does not require oil care and prevents foreign objects from getting involved. , Independent brake; wheel surface using TPR polymer wear-resistant material, wear-resistant, no noise.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
1. Anti-collision bed head PP four small guardrails, three shaker parameters
1. Product dimensions: length: 2100mm, width: 1050mm, height: 430-680mm.
2. The inclination angle of the back is 0~75°, and the inclination angle of the legs: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
3. Product materials: the upper and lower bed frames are both 60×30×1.2mm and are welded and formed by high-quality cold-rolled carbon steel pipe automatic welding robots. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
4. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed by cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
5. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
6. The four-piece split-type lifting ABS guardrail is installed on the bed panel and can act simultaneously with the function of the bed body. It can go up and down, and there is a pneumatic deceleration device during the descending process to prevent injury to personnel due to excessive speed during the descending process.
7. The headboard and footboard of the luxurious abs are made of high-grade engineering plastics, all the locking parts of the headboard are made of steel, and the symmetrical quick socket can be quickly disassembled. The middle hanging design is in line with the aesthetics. There are anti-collision wheels at the four corners.
8. The central control brake pedal, the caster has built-in precision bearings, the wheel column is 28mm, the double-sided wheel is made of polymer material, the diameter of the wheel surface is 125mm, dustproof, quiet and wear-resistant
9. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
10. The inner layer of the mattress is made of high-density sponge and machine-pressed positive brown Hainan coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation. The overall thickness of the mattress is 80mm, of which the sponge is 40mm and the coconut palm is 40mm. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash;
Three-shake hospital bed product parameters
1. Product dimensions: length: 2100mm, width: 960mm.
The back inclination angle is 0~75°, and the leg inclination angle: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts double support structure, and the double support is stamped and formed by cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. The total length of the side guardrail is 1400mm, D-type aluminum alloy handrail, surface hardening treatment, six aluminum alloy guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 3.0mm, the switch is carefully designed to ensure the safety of long-term use, equipped with Anti-loosening fasteners, wear-resistant, non-deformable, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6. The streamlined European version of the headboard and tailboard is made of ABS reinforced plastic material. It is formed at one time, without gaps, easy to clean, and does not deform. It has a hidden lock switch, which is stable and reliable. Anti-collision function; symmetrical quick hook seat, which can be quickly disassembled.
7. 5-inch high-grade casters are used, with built-in fully enclosed self-lubricating bearings, no need for refueling and nursing, preventing foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, resistant to acid and alkali corrosion, and resistant to color, effectively prolonging the service life.
9. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash; the inner layer is made of high-density sponge and machine-pressed coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation. ; The overall thickness of the mattress is 80mm, including 40mm of sponge and 40mm of coconut palm.
Product parameters of PP guardrail with central control wheel
1. Product dimensions: length: 2100mm, width: 1050mm.
The back inclination angle is 0~75°, and the leg inclination angle: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed from cold steel plates, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. The four-piece split-type lifting ABS guardrail is installed on the bed panel and can act simultaneously with the function of the bed body. It can go up and down, and there is a pneumatic deceleration device during the descending process to prevent injury to personnel due to excessive speed during the descending process.
6. The streamlined European version of the headboard and tailboard is made of ABS reinforced plastic material. It is formed at one time, without gaps, easy to clean, and does not deform. It has a hidden lock switch, which is stable and reliable. Anti-collision function; symmetrical quick hook seat, which can be quickly disassembled.
7. It adopts high-grade central control casters with a diameter of 150MM, high bearing capacity, stable operation and no noise. The control function is realized by pressing and lifting the control bar. The built-in fully enclosed self-lubricating bearing does not require oil care and prevents foreign objects from getting involved. , Independent brake; wheel surface using TPR polymer wear-resistant material, wear-resistant, no noise.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
1. Anti-collision bed head PP four small guardrails, three shaker parameters
1. Product dimensions: length: 2100mm, width: 1050mm, height: 430-680mm.
2. The inclination angle of the back is 0~75°, and the inclination angle of the legs: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
3. Product materials: the upper and lower bed frames are both 60×30×1.2mm and are welded and formed by high-quality cold-rolled carbon steel pipe automatic welding robots. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
4. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts a double support structure, and the double support is stamped and formed by cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
5. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
6. The four-piece split-type lifting ABS guardrail is installed on the bed panel and can act simultaneously with the function of the bed body. It can go up and down, and there is a pneumatic deceleration device during the descending process to prevent injury to personnel due to excessive speed during the descending process.
7. The headboard and footboard of the luxurious abs are made of high-grade engineering plastics, all the locking parts of the headboard are made of steel, and the symmetrical quick socket can be quickly disassembled. The middle hanging design is in line with the aesthetics. There are anti-collision wheels at the four corners.
8. The central control brake pedal, the caster has built-in precision bearings, the wheel column is 28mm, the double-sided wheel is made of polymer material, the diameter of the wheel surface is 125mm, dustproof, quiet and wear-resistant
9. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, anti-acid and alkali corrosion, anti-stain, and effectively prolongs the service life.
10. The inner layer of the mattress is made of high-density sponge and machine-pressed positive brown Hainan coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation. The overall thickness of the mattress is 80mm, of which the sponge is 40mm and the coconut palm is 40mm. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash;
Three-shake hospital bed product parameters
1. Product dimensions: length: 2100mm, width: 960mm.
The back inclination angle is 0~75°, and the leg inclination angle: 0~40°. The overall lifting adjustment range is 430mm--680mm, which can be adjusted arbitrarily.
2. Product materials: The upper and lower bed frames are both 60×30×1.2mm and are welded by high-quality cold-rolled carbon steel pipe by automatic welding robot. The bed panel is made of 1.2mm high-quality cold-rolled carbon steel plate. The inner side and center of the bed are welded with 40 ×20×1.2mm cold-rolled carbon steel pipe strengthens the structure, improves the strength of the bed plate, is solid and durable, bears balanced force, has strong pressure resistance, and has ventilation holes, and has anti-skid function.
3. The bed body can carry 240Kg statically and 200Kg dynamically; the back bed surface adopts double support structure, and the double support is stamped and formed by cold steel plate, which strengthens the bearing capacity of the back plate, and the rocker bears less pressure, and the operation is labor-saving when shaking.
4. Three sets of rockers; ABS reinforced plastic rocker handle, hidden design, pasted with position lift logo, so that the operation is clear at a glance. The rocker is all stainless steel design, firm and flexible, no noise, easy to operate; the patient's back can be flexibly adjusted. It adopts the in-position limit protection device and coats the ABS plastic dust jacket, which is beautiful in appearance, wear-resistant and has a long service life.
5. The total length of the side guardrail is 1400mm, D-type aluminum alloy handrail, surface hardening treatment, six aluminum alloy guardrail pillars, the upper and lower connecting parts are made of one-time stamping and forming steel parts, the thickness is 3.0mm, the switch is carefully designed to ensure the safety of long-term use, equipped with Anti-loosening fasteners, wear-resistant, non-deformable, can shrink and lay flat, slightly higher than the bed surface when shrinking, which can prevent the mattress from shifting.
6. The streamlined European version of the headboard and tailboard is made of ABS reinforced plastic material. It is formed at one time, without gaps, easy to clean, and does not deform. It has a hidden lock switch, which is stable and reliable. Anti-collision function; symmetrical quick hook seat, which can be quickly disassembled.
7. 5-inch high-grade casters are used, with built-in fully enclosed self-lubricating bearings, no need for refueling and nursing, preventing foreign objects from being involved, and independent braking; the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise-free.
8. The whole bed is treated with double phosphating + electrostatic powder coating. The bed coating adopts antibacterial coating, which is antibacterial and antibacterial, resistant to acid and alkali corrosion, and resistant to color, effectively prolonging the service life.
9. The bed cover is made of green single-sided Oxford tarpaulin material, with zipper settings, and the reserved infusion jack is easy to remove and wash; the inner layer is made of high-density sponge and machine-pressed coconut palm, which has strong air permeability and is treated with insect-proof and anti-deformation. ; The overall thickness of the mattress is 80mm, including 40mm of sponge and 40mm of coconut palm.
